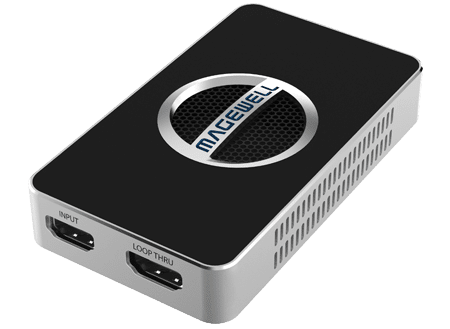

Magewell USB Capture HDMI 4K Plus


Magewell Part Number: 32090 One channel 4K Capture Device

  • Capture HDMI + embedded audio
  • Loop-through HDMI signal
  • Audio input via mic
  • Extract HDMI embedded audio output via headphones
  • Support HDMI 2.0, 4Kp60 4:4:4 input. Capture from the newest game consoles such as PS4 Pro and XBOX One S


Magewell USB Capture HDMI 4K Plus.  Supports 4K inputs up to 60fps via HDMI 2.0 connectivity. Capturing at 30fps. 4K inputs with 4:4:4 or 4:2:2 color sampling are automatically converted to 4:2:0 for capture in the NV12 or I420 color space formats. To fit within the bandwidth available in the USB 3.0 standard.

Like the existing Magewell USB video ingest solutions. The newest USB Capture Plus models enables all types of computers including laptops to capture professional video and audio signals. This is done through a standard USB 3.0 interface. No additional power source required. Available with SDI or HDMI inputs. The 4K USB Capture Plus devices capture resolutions up to 4096×2160, including 3840×2160 in Ultra HD.

Magewell USB Capture HDMI 4K Plus The USB Capture HDMI 4K Plus offers loop-through connections. Reducing workflow costs and complexity by enabling source signals to be sent simultaneously to additional displays or equipment. No requirement for external splitters or routers. This cost-effective convenience combines with the devices rich feature set, extensive compatibility to make them ideal for both end-user applications and as ‘glue’ solutions for systems integrators, implementing complete 4K projects. The USB Capture HDMI 4K Plus support Windows, Mac and Linux operating systems. Compatibility with popular streaming, encoding, live production, collaboration, video conferencing and lecture capture software.

Magewell Exhibits USB Capture 4K Plus at InfoComm 2017LINK

How to capture the computer’s screen display using the Magewell USB Capture HDMI Plus and OBSLINK

InterfaceVideo EngineSignal Detection & SupportSoftware Environment
Input Interface
• HDMI x1
• Support input resolution up to 4096×2160 pixels

Loop-Through Interface
• HDMI x1
• Support loop-through resolution up to 4096×2160 pixelss

Audio Input Interface
• 3.5 mm audio jack for microphone

Audio Output Interface
• 3.5 mm audio jack for headphones

Host Interface
• USB 3.0
8-bit video processing



Color Adjustment

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

Mirror and Flip
Auto Detection of Input Signal Format

• Windows, Linux, Mac, Chrome OS

Driver and Firmware
• Driver Free, Updatable Firmware

Included Software
• USB Capture Utility, Capture Express

Compatible Software
