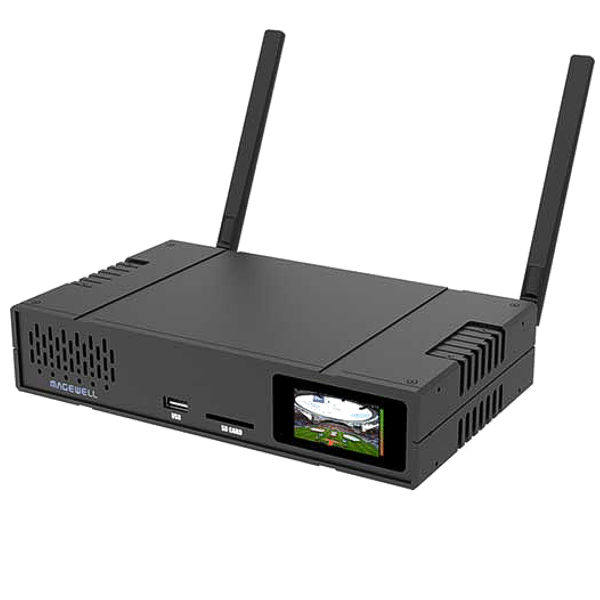

Magewell Ultra Encode AIO

Description

The Ultra Encode AIO live media encoder from Magewell is a powerful device that takes live streaming capabilities to a whole new level. With advanced features and expanded functionalities, the Ultra Encode AIO is ideal for a wide range of use cases including sports, education, live events, IP-based production, and AV-over-IP. See below exploring the key features and specifications of the Ultra Encode AIO, highlighting its multi-input video processing, flexible formats and protocols, powerful encoding and streaming capabilities, versatile recording and streaming options, and support for NDI®|HX 3

.

Multi-Input Video Processing

The Ultra Encode AIO is a single-channel encoder that can handle multiple input sources. It supports both HDMI and SDI inputs, allowing users to connect their preferred video sources. The device can encode one live input source, either HDMI or SDI, or mix video from both inputs using picture-in-picture or side-by-side configurations. Additionally, users can apply up to eight user-configurable overlays, including text, images, and a clock, to the output profile, enhancing the visual presentation of their live stream.

Flexible Formats and Protocols

The Ultra Encode AIO supports a wide range of video encoding formats, including H.264, H.265 (HEVC), NDI®|HX 2, and NDI®|HX 3. This versatility enables users to choose the most suitable format for their specific requirements. The device also supports various delivery protocols such as RTMP, RTMPS, SRT, RTSP, RTP, HLS, and TVU’s ISSP technology, ensuring compatibility with different streaming platforms and networks. With support for up to eight channels of AAC audio encoding, the Ultra Encode AIO offers comprehensive audio capabilities as well.

Powerful Encoding & Streaming Capabilities

The Ultra Encode AIO is equipped with powerful encoding and streaming capabilities, enabling users to deliver high-quality video content. It can encode video at resolutions up to 4096×2160 at 30 frames per second from HDMI sources, or up to 1080p HD at 60 fps from the device’s 3G-SDI input. With the ability to stream to up to six different target destinations simultaneously, users can reach a wider audience across multiple platforms. Each stream can achieve bitrates of up to 32Mbps, ensuring optimal video quality for viewers.

Versatile Recording and Streaming

In addition to streaming, the Ultra Encode AIO also supports simultaneous recording. Users can choose to record their inputs as files to an SD card or an external USB-connected storage device. The device supports popular file formats such as MP4 and MOV, providing flexibility for post-production editing or archiving purposes. Moreover, the Ultra Encode AIO offers options for networked storage, allowing users to record directly to NFS, CIFS, or SMB shares. This feature is particularly useful for organizations that require centralized storage management.

NDI®|HX 3 Support

For IP production workflows and AV-over-IP signal distribution architectures, the Ultra Encode AIO supports the latest version of NDI®|HX, which is NDI®|HX 3. NDI® (Network Device Interface) is a popular IP media transport technology platform developed by the Vizrt Group. It offers high-efficiency, low-bandwidth options for transmitting audio, video, and metadata over IP networks. With NDI®|HX 3 support, users can benefit from enhanced performance and improved compatibility with other NDI® devices.

Specification and Features

Input Features

• HDMI max input signal: 4096×2160 60fps 4:2:0; 4096×2160 30fps 4:4:4/4:2:2
• SDI max input signal: 2048×1080 60fps 4:2:2
• Input 16-Channel SDI embedded audio
• Input 8-Channel, 24-bit HDMI embedded audio
• Input audio from 3.5mm LINE IN

Encoding Features

• Dual stream encoding profiles: main stream and sub stream (Max bitrate: 32Mbps)
• Support for H.264/HEVC video encoding
• Encoding 8-channel AAC

Streaming Features

• Native support for streaming to Facebook, Twitch, and YouTube
• Supported streaming protocols: RTSP, RTMP, RTMPS, SRT Caller, SRT Listener, NDI®|HX2, NDI®|HX3, HLS, TS over UDP, TS over RTP, TVU ISSP
• Simultaneous streaming to six sessions over multiple streaming protocols
• Support for streaming schedule for each destination

Recording Features

• Record to an SD card or external USB storage (MP4 or MOV format supported)
• Support for loop recording when using an SD card
• Share recorded files with NFS/CIFS/SMB
• Support for recording schedule

Others

• LCD monitor for system status and input signal
• Internet connectivity via wired Ethernet and wireless network
• Remote control via Web GUI and Magewell Cloud
• Provide HTTP APIs

The firmware of the Ultra Encode AIO is regularly updated to introduce new features and improvements. The latest firmware version provides support for new live destination types, including Wowza over RTMP and Wowza over SRT. It also offers the ability to rotate images of the main and sub streams, custom PID configuration for TS over UDP/RTP, and the option to configure ports for HTTP/HTTPS. Additionally, the firmware update includes the addition of admin users, the ability to disable the encoder of the sub stream, support for Control Hub, and bug fixes.
