Magewell provides support to most of the popular signals as well as signal from retro and legacy equipment.
HDMI 6 Models
SDI 4 Models
AIO 3 Models
DVI 3 Models
MINI 2 Models
SD 1 Model
Offer single/dual/quad-channel video capture. Support HDMI (up to 4K), SDI (up to 2K), DVI & SD signals.
Super-low processing and transmission latency down to 64 video lines. For example, the capture latency of 1080p 60Hz and YUY2 can be lower than 1 ms. Low-latency mode doesn’t require SDK integration. To further reduce the total latency, users can integrate Magewell SDK to enable partial notification function. Click here for more information.

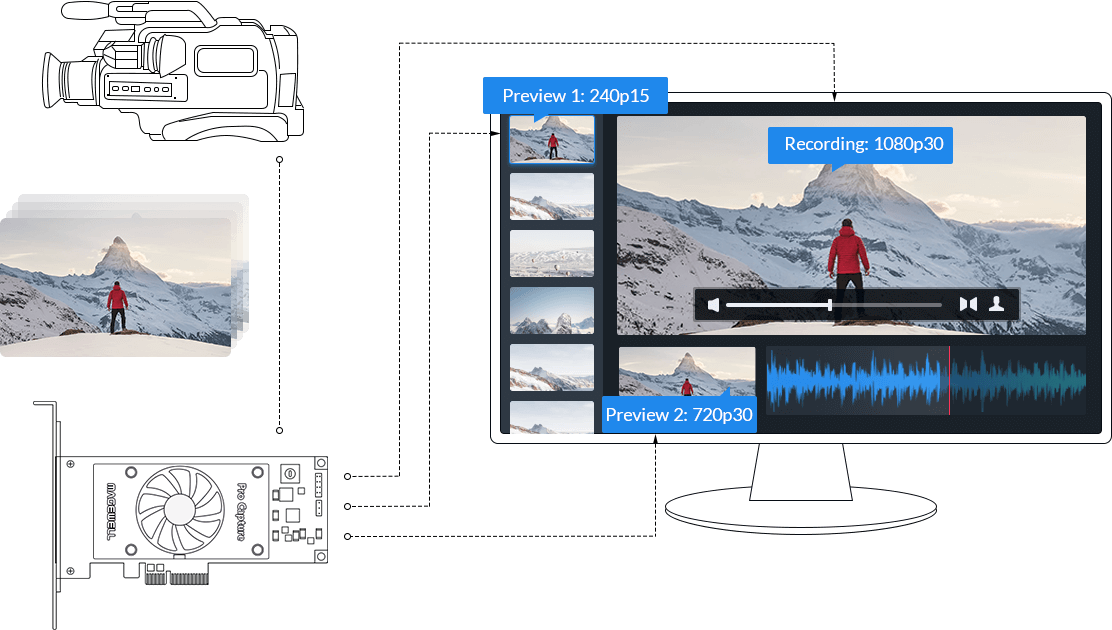

One video source can be delivered as any number of normal streams or two real-time streams to different software for processing. The resolution, frame rate, deinterlacing mode, image control, etc of each stream can be different. Each stream can reach the set frame rate with no frame drops. For example, users can live broadcast, record and preview a skiing contest simultaneously using Flash Media Live Encoder, Capture Express and Windows Media Encoder. This function causes 0 CPU usage.
Multiple cards can be installed on the same host and work at the same time. Mark the card by setting the number on the rotary switch. There are hexadecimal numbers on the rotary switch. Users can set the number on the rotary switch on each card. The number will appear together with the name of the cards in device manager and video capture software. When multiple same cards are mounted, the user can locate a certain card quickly by the number. Set different numbers on the rotary switches of the cards
Users don’t need to select the input signal format to have it correctly recognized.AUTO-DETECTION OF INPUT SIGNAL When the signal is connected, the card will automatically detect the input signal and link the audio input with the video input. SUPPORT 3D HDMI Support 3 types of 3D HDMI signals: frame packed, top-and-bottom, and side-by-side. TIMECODE Pro Capture cards can analyze the time information (hour, minute, second and frame) in HDMI signal output by Sony/Canon DSLR. CLOSED CAPTION All the Magewell SDI capture cards can support Closed Caption 708 and 608 if Windows SDK is used.
FPGA-based video processing, effectively reducing CPU usage. Up/Down Conversion Color Adjustment Color Space Conversion Crop Hardware timestamp OSD High fidelity video processing pipeline Deinterlacing SG-DMA transmission mode
