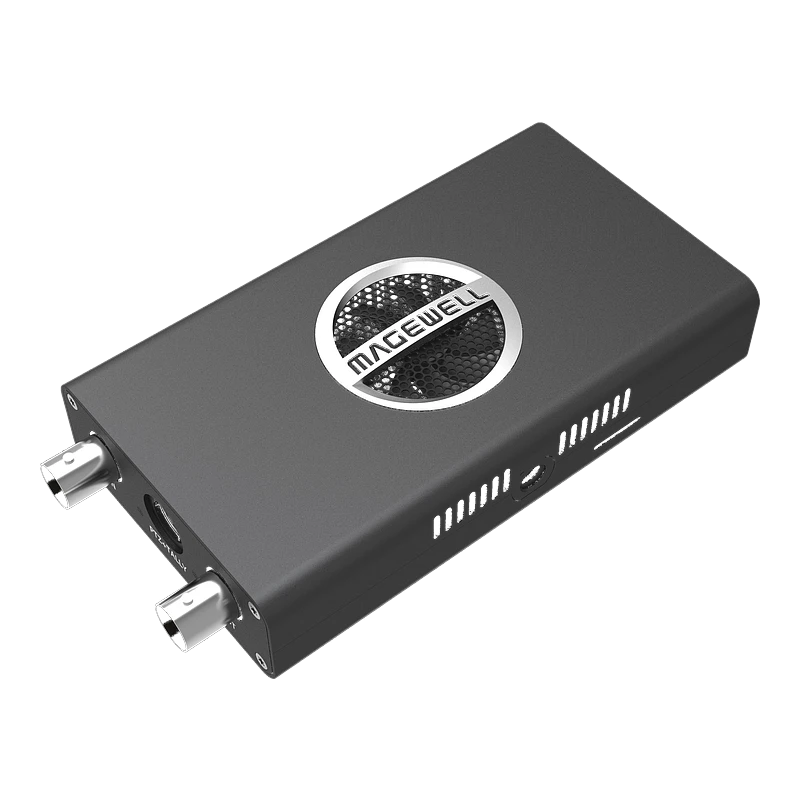

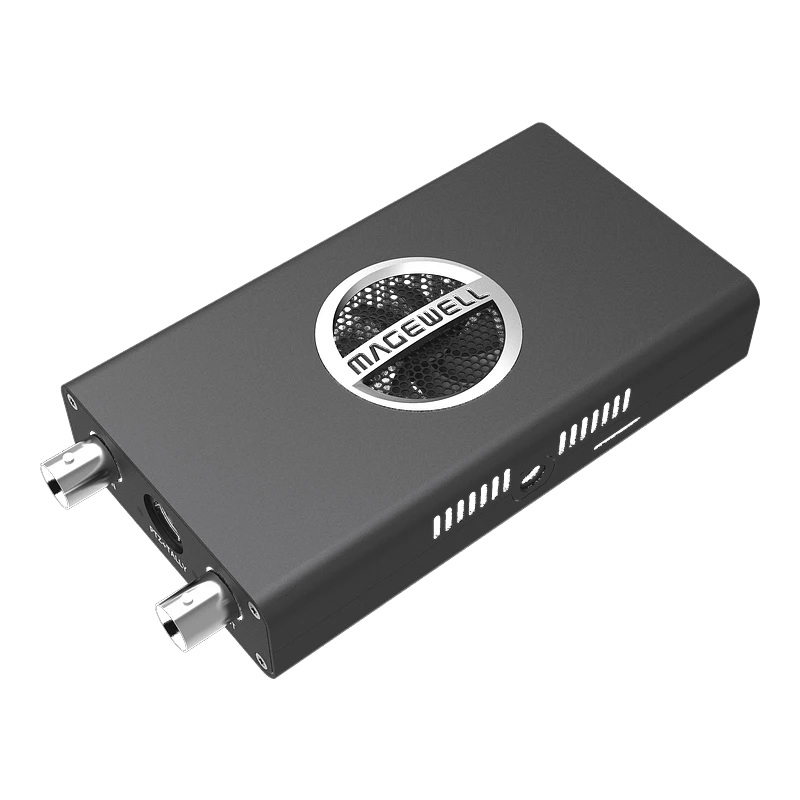

The Magewell Pro Convert SDI 4K Plus is a single-channel 6G-SDI to Full NDI encoder with SDI loop-through. It is the 4K-capable step up from the Pro Convert SDI Plus in the Pro Convert family.
Where the SDI Plus handles 3G-SDI sources up to 1080p60, the SDI 4K Plus accepts 6G-SDI inputs at up to 4096×2160 at 30fps. It then encodes them as Full NDI High Bandwidth streams at up to 4096×2160 at 60fps. Therefore, it is the right choice for any deployment where a 4K SDI source needs to enter an NDI production workflow. Additionally, it provides simultaneous local loop-through monitoring.
PoE powered, camera-mountable, PTZ-controllable and tally-equipped, it maintains the entire Pro Convert Plus feature set. At the same time, it adds the 4K SDI capability that larger broadcast and live production installations demand.
Core Functions & Capabilities
- 6G-SDI to Full NDI 4K Encoding: Accepts single-link 6G-SDI sources at up to 4096×2160 (DCI 4K) at 30fps — and encodes them as Full NDI High Bandwidth streams at up to 4096×2160 60fps 4:2:2 8-bit, upconverting frame rate as required via the onboard FPGA processing engine.
- SDI Loop-Through Output: A dedicated BNC SDI loop-through passes the full input signal simultaneously with NDI encoding — feeding a 4K monitor, downstream SDI router or recording device without any signal interruption, degradation or additional hardware.
- 16-Channel SDI Audio: Captures all 16 channels of SDI-embedded audio and encodes them as 16-channel NDI-embedded audio — preserving the complete audio payload of 4K SDI broadcast sources including multi-group audio configurations.
- Broad SDI Standard Support: Accepts SD, HD, 3G and 6G-SDI standards (ST 259, ST 292, ST 425, ST 2081) with automatic format detection — compatible with both current 4K 6G-SDI infrastructure and legacy SD/HD SDI cameras and sources.
- FPGA Video Processing: Onboard FPGA handles deinterlacing, up/down scaling, frame rate conversion and aspect ratio adjustment entirely in hardware — enabling the 4K30 SDI input to be encoded as a 4K60 NDI stream with zero CPU overhead on any connected host.
- Flexible NDI Output Resolution: Encodes at the native input resolution or any custom resolution, with output frame rates at full, half, third or quarter of the input — enabling simultaneous full-quality 4K programme streams and reduced-bandwidth HD or preview streams from the same source.
- PTZ Camera Control: Controls PTZ cameras over the network via VISCA, Visca UDP, Visca UDP2RS232, PELCO-P and PELCO-D through the shared Mini-DIN 8 port — enabling complete remote camera control alongside 4K NDI encoding from a single PoE device.
- Programme & Preview Tally: Dedicated programme (red) and preview (green) tally LEDs on the device, with tally signals via the Mini-DIN 8 port for connection to on-camera tally lights. Tally light accessory included in the box.
Key Features
- PoE Powered: IEEE 802.3af Power over Ethernet — a single cable delivers both 4K NDI streaming and device power. No mains adapter required at the installation point, even for 4K operation. USB 5V/2.1A also supported.
- Long 6G-SDI Cable Support: Integrated cable equaliser supports 6G-SDI runs up to 100m (328ft) — enabling installation at 4K camera positions or 4K router outputs across large venues and studios without signal repeaters.
- Camera Mountable: ¼–20 threaded mounting hole enables direct mounting on camera cages, hot shoe adapters and accessory brackets — ideal for 4K PTZ cameras and large-sensor broadcast cameras with 6G-SDI output.
- NDI 6.2 Support: Updated to NDI SDK 6.2 — fully compatible with current NDI production infrastructure, software discovery and multi-subnet routing.
- Browser-Based Web GUI: Full configuration, signal monitoring and PTZ control via any modern browser — no software required. Compatible with IE, Edge, Firefox, Chrome, Safari and Opera.
- Control Hub Compatible: Registers with Magewell Control Hub for centralised management, firmware updates and signal monitoring across multiple Pro Convert devices — essential for facilities with multiple 4K SDI conversion points.
- Crestron & Q-SYS Plugins: Official Crestron SIMPL+ and Q-SYS plugins available — enabling full integration into enterprise AV control systems for professional 4K installation projects.
- Modator Chassis Module Available: A module version of the same specification is available for the Magewell Modator 2U chassis — enabling high-density multi-channel 4K SDI NDI encoding in a 2U rack footprint.
Ideal For
- 4K Broadcast Studios — 6G-SDI Camera to NDI: Convert 4K SDI studio cameras and ENG cameras to NDI at source — loop-through maintains the existing 4K SDI router connection, tally lights keep camera operators informed and PoE eliminates mains power runs to camera positions.
- Live Production & IMAG — 4K Sources: Bring 4K 6G-SDI cameras at fixed venue positions into an NDI production workflow over the venue network — with loop-through maintaining local 4K monitor feeds and PTZ control enabling remote camera operation from the production desk.
- 4K Sports Production: Convert 4K pitch-side cameras and OB truck outputs to NDI — feeding production switchers, replay systems and streaming encoders over IP while loop-through maintains the existing 4K SDI signal path.
- Houses of Worship — 4K Camera Upgrade: Upgrade existing SDI production workflows to 4K NDI at the camera — retaining all existing SDI cabling and downstream equipment via loop-through while gaining the flexibility and scalability of NDI distribution.
- Corporate AV — 4K Auditoriums: Convert 4K SDI camera outputs in large auditoriums and conference facilities to NDI for distribution to recording systems, streaming encoders and remote endpoints — without replacing installed 6G-SDI cabling.
- Education & Lecture Capture: Encode 4K SDI lecture cameras as NDI for high-resolution lecture capture, live streaming and hybrid delivery — loop-through maintains local 4K display output while NDI feeds capture and distribution systems.
Magewell Part Number: 64030. Full technical specifications are available on the Specifications tab above. NDI® is a trademark of Vizrt NDI AB. SDI loop-through and tally light included. Modator module version available separately.
