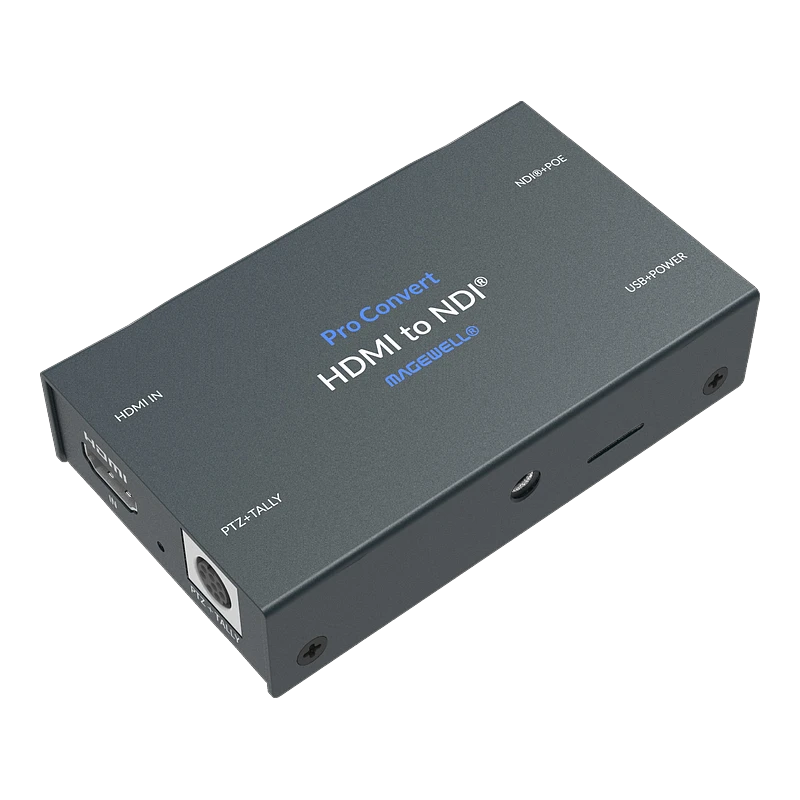

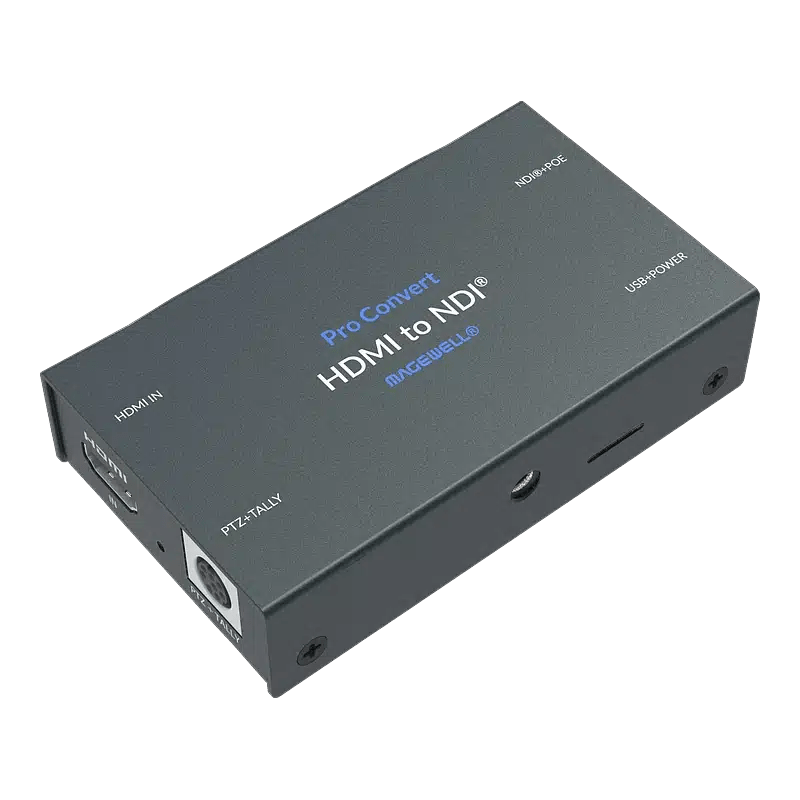

The Magewell Pro Convert HDMI TX is the entry-level HDMI NDI encoder in the Pro Convert family — delivering cost-effective, reliable HDMI-to-NDI conversion for installations where a dedicated, fixed-direction encoder is all that is required. Converting a single HDMI 1.4 source at up to 2048×1200 at 60fps into a Full NDI High Bandwidth stream, it brings any HDMI camera, presentation output, AV source or computer display onto a standard Gigabit Ethernet network as an immediately discoverable NDI source — without loop-through, without switching modes and without the additional cost of the Plus model features that many straightforward installations simply do not need. PoE powered, camera-mountable, PTZ-capable and tally-equipped, it includes the complete Pro Convert family feature set where it counts — and removes what it doesn’t. Supplied by iView Data, authorised UK Magewell distributor, with full UK warranty and same-day dispatch from UK stock.
Core Functions & Capabilities
- HDMI to Full NDI Encoding: Converts any HDMI 1.4 or DVI-D source at up to 2048×1200 (WQXGA) at 60fps into a Full NDI High Bandwidth stream — making any HDMI camera, laptop, presentation system or AV source immediately discoverable on the network by all NDI-enabled production software, monitors and devices.
- 8-Channel HDMI Audio: Captures up to 8 channels of HDMI-embedded audio and encodes them as 8-channel NDI-embedded audio — preserving the full audio payload of HDMI sources in the NDI stream without channel reduction or downmixing.
- Flexible NDI Output Resolution: Encodes at the native input resolution or any custom resolution, with output frame rates at full, half, third or quarter of the input — enabling reduced-bandwidth NDI streams for preview or monitoring alongside full-quality programme outputs as required.
- FPGA Video Processing: Onboard FPGA handles deinterlacing, up/down scaling, frame rate conversion, aspect ratio conversion and EDID management entirely in hardware — with zero CPU overhead on any connected host and consistent deterministic low latency.
- Custom EDID Support: EDID configurable via the web GUI — enabling the device to negotiate any specific resolution and format from the connected HDMI source, overriding default display negotiation for precise signal control.
- PTZ Camera Control: Controls PTZ cameras over the network via VISCA, Visca UDP, Visca UDP2RS232, PELCO-P and PELCO-D through the shared Mini-DIN 8 port — enabling complete remote PTZ camera operation alongside HDMI NDI encoding from a single PoE connection.
- Programme & Preview Tally: Dedicated programme (red) and preview (green) tally LEDs on the device, with tally signals via the Mini-DIN 8 port for on-camera tally lights — tally light accessory included in the box for immediate deployment.
- NDI 6.2 Support: Updated to NDI SDK 6.2 — fully compatible with current NDI production infrastructure, Control Hub management and network discovery.
Key Features
- PoE Powered — Entry Cost, Full PoE Convenience: IEEE 802.3af Power over Ethernet delivers both network connectivity and device power in a single cable at every installation point — the same PoE convenience as the flagship HDMI 4K Plus, at the TX entry price point. USB 5V/2.1A also supported.
- TX Model — No Loop-Through, Lower Cost: Unlike the HDMI Plus, the TX has no HDMI loop-through output — the right choice when only an NDI stream is needed at the conversion point and no simultaneous local HDMI monitoring is required. The cost saving is significant in large multi-camera installations where loop-through is unnecessary.
- Camera Mountable: ¼–20 threaded mounting hole enables direct mounting on camera cages, hot shoe adapters and accessory brackets — ideal for field, event and studio HDMI camera deployments where the compact Pro Convert form factor sits directly on or beside the camera.
- Audio Gain & VU Metering: Per-channel audio gain control, sample rate selection, channel selection and on-screen VU metering available via the web GUI — providing full audio management without external monitoring hardware.
- Image Flip & Safe Area Controls: Configurable image flip for inverted projector installations and safe area overlay controls for ensuring critical content visibility — practical features for installation and digital signage deployments.
- Browser-Based Web GUI: Full configuration including EDID management, video processing, audio settings, PTZ control and signal monitoring via any modern browser — no software required. Compatible with IE, Edge, Firefox, Chrome, Safari and Opera.
- Control Hub Compatible: Registers with Magewell Control Hub for centralised management, firmware updates and real-time monitoring across multiple Pro Convert devices — essential for large installations with many HDMI-to-NDI conversion points.
- Crestron & Q-SYS Plugins: Official Crestron SIMPL+ and Q-SYS plugins available — enabling full integration into enterprise AV control systems for professional HDMI-to-NDI installation projects.
Ideal For
- HDMI Camera Integration — Cost-Effective NDI Conversion: Convert HDMI cameras, camcorders and mirrorless cameras at fixed positions to NDI over the existing network — the TX is the right choice when no local monitoring loop-through is needed at the camera position, delivering the same NDI stream quality at a lower price point.
- Houses of Worship — Multiple Camera Positions: Bring multiple HDMI cameras throughout a venue into an NDI production workflow — PoE powered at each camera position, tally lights confirming live status, and PTZ control enabling remote camera operation, all from a single Ethernet connection per camera.
- Corporate AV — Presentation & Camera Encoding: Convert HDMI laptop outputs, presentation systems and room cameras to NDI for distribution to production software, recording systems and streaming encoders across the corporate network — without loop-through infrastructure at each conversion point.
- Education & Lecture Capture: Encode HDMI lecture room cameras, document cameras and presenter laptops as NDI for lecture capture systems, live streaming and hybrid delivery — PoE powered and browser-managed from the AV control room without visiting each device.
- Live Events & Conferences: Convert HDMI cameras, podium outputs and presentation systems at event locations to NDI over the venue network — cost-effective multi-source NDI production without the overhead of Plus model features not needed at every conversion point.
- Digital Signage & AV Distribution: Encode HDMI sources including media players, set-top boxes and computer displays as NDI for IP-based AV distribution across a building or campus — with image flip for ceiling-mounted or inverted display installations and safe area controls for signage content management.
Magewell Part Number: 64050. Full technical specifications are available on the Specifications tab above. NDI® is a trademark of Vizrt NDI AB. Tally light included. No HDMI loop-through — see Pro Convert HDMI Plus (Part No. 64030) for loop-through variant. Supplied by iView Data, authorised UK Magewell distributor, with full UK warranty and same-day UK dispatch.
