The Magewell Pro Convert HDMI Plus is a compact standalone NDI encoder that converts a single HDMI source — including sources up to 4096×2160 at 30fps — into a Full NDI High Bandwidth stream on a standard Gigabit Ethernet network. As a Plus model in the Pro Convert family, it includes HDMI loop-through output, a dedicated tally light port, PTZ camera control and the flexibility to be switched between encode and decode modes via firmware — making it significantly more versatile than the TX-only entry models. PoE powered, camera-mountable and browser-configured, it is the preferred choice when a single HDMI source needs to become a permanent, reliable NDI stream within a professional production environment.
Core Functions & Capabilities
- HDMI to Full NDI Encoding: Encodes any HDMI 1.4 or DVI-D source at up to 4096×2160 30fps 4:4:4/4:2:2 or 4096×2160 60fps 4:2:0 as a Full NDI High Bandwidth stream — making any HDMI camera, presentation output or AV source immediately discoverable on the network.

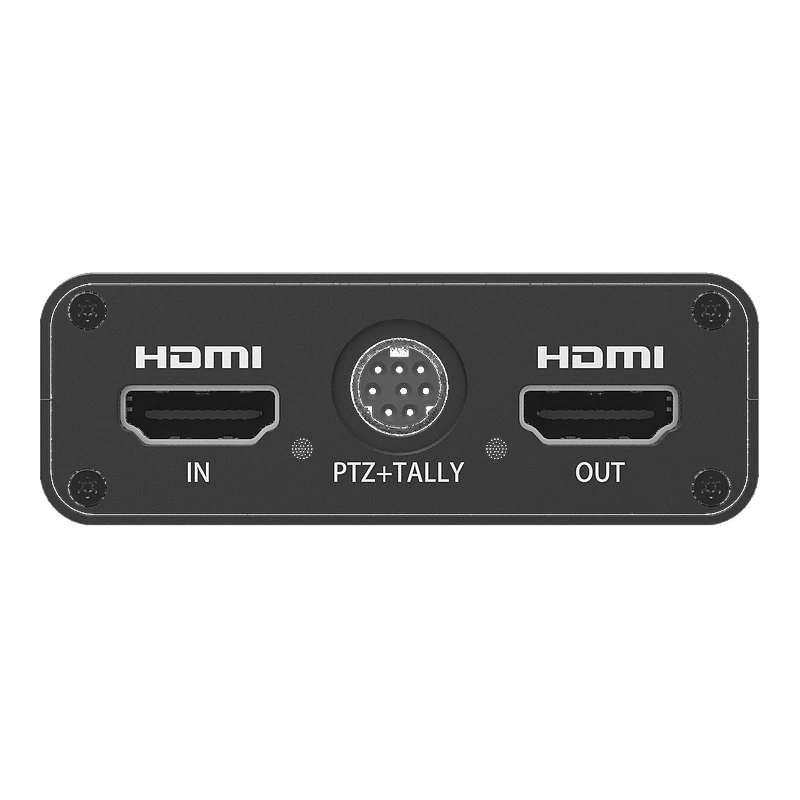

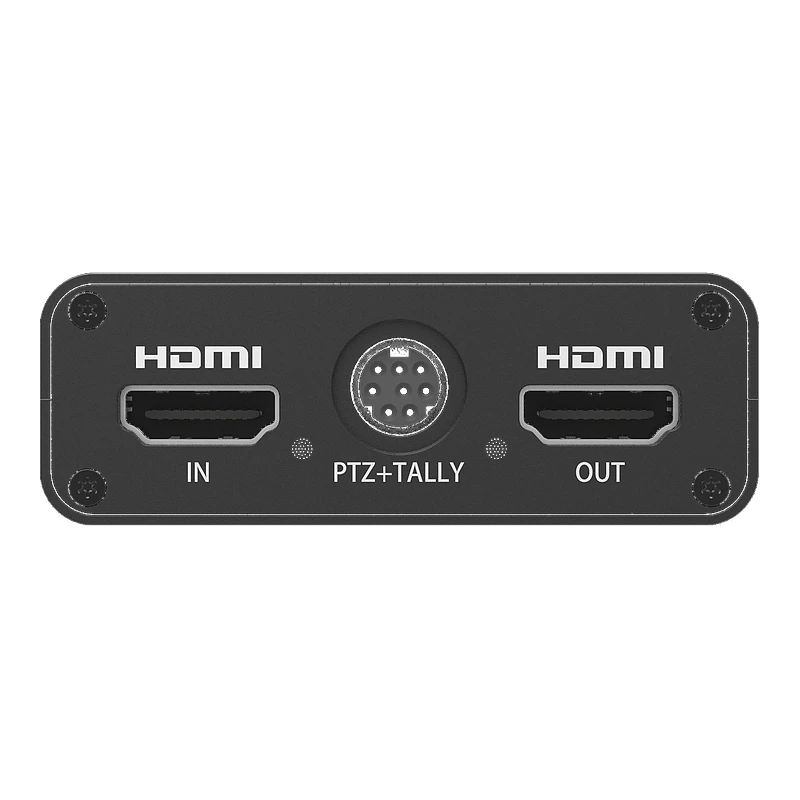

- HDMI Loop-Through Output: A dedicated HDMI loop-through passes the full input signal to a local monitor, confidence display or downstream device — simultaneously with encoding to NDI. No external splitter required, no signal degradation at either output.
- 8-Channel HDMI Audio: Captures all 8 channels of HDMI-embedded audio and transmits them as 8-channel NDI-embedded audio — preserving the full audio payload of HDMI sources including multi-channel and surround sound configurations.
- Flexible Output Resolution: Encodes at the native input resolution or any custom resolution, with output frame rates at full, half, third or quarter of the input. Enables low-bandwidth NDI streams for preview monitoring alongside full-quality programme outputs.
- FPGA Video Processing: Onboard FPGA handles deinterlacing, up/down scaling, frame rate conversion, aspect ratio adjustment and EDID configuration — entirely in hardware with zero CPU overhead on any connected host system.
- PTZ Camera Control: Controls PTZ cameras over the network using VISCA, Visca UDP, Visca UDP2RS232, PELCO-P and PELCO-D protocols via the shared Mini-DIN 8 port — enabling NDI-based PTZ control without a separate controller or serial infrastructure.
- Programme & Preview Tally: Dedicated tally LEDs show programme (red) and preview (green) status — with tally signals available via the Mini-DIN 8 port for connection to on-camera tally lights. Tally light accessory included in the box.
- NDI 6.2 Support: Updated to NDI SDK 6.2 — ensuring full compatibility with current NDI production infrastructure, software and network discovery.
Key Features
- PoE Powered: IEEE 802.3af Power over Ethernet — a single cable delivers both data and power, simplifying installation at camera or display locations without separate power runs. USB 5V/2.1A also available as an alternative.
- Camera Mountable: ¼–20 threaded mounting hole enables direct mounting on a camera cage, hot shoe adapter or standard camera accessory bracket — ideal for field, event and PTZ camera installations.
- Compact Form Factor: 117.5 × 66.7 × 23.4mm — slightly larger than the standard Pro Convert footprint to accommodate the loop-through HDMI port, but still easily desk-mounted, bracket-mounted or rack-shelved alongside other devices.
- Browser-Based Web GUI: Full configuration, EDID management, signal monitoring and PTZ control via any modern browser — no software required. Compatible with IE, Edge, Firefox, Chrome, Safari and Opera.
- Control Hub Compatible: Registers with Magewell Control Hub for centralised management, firmware updates and monitoring of multiple Pro Convert devices from a single interface across a facility or multi-site deployment.
- Crestron & Q-SYS Plugins: Official Crestron SIMPL+ and Q-SYS plugins available — enabling full integration into enterprise AV control systems for professional installation and building automation projects.
- Modator Chassis Module Available: A module-type version of the same specification is available for deployment in the Magewell Modator 2U chassis — enabling high-density multi-channel HDMI NDI encoding in a 2U rack footprint.
- Broad Software Compatibility: Works out of the box with NDI Studio Monitor, OBS, vMix, Wirecast and all NDI-enabled production software — discoverable immediately on connection without driver installation.
Ideal For
- PTZ Camera Integration: Mount directly on or beside a PTZ camera to convert its HDMI output to NDI — simultaneously controlling the camera via the PTZ port and monitoring its signal via the loop-through, all from a single PoE connection.
- Houses of Worship — Fixed Camera Positions: Convert installed HDMI cameras at fixed positions throughout a venue to NDI over the existing network — with loop-through feeding local confidence monitors and tally lights keeping camera operators informed of live status.
- Broadcast & Studio — HDMI Sources to NDI: Bring HDMI cameras, graphics outputs, presentation systems and monitor loop-outs into an NDI production workflow — without replacing existing HDMI infrastructure or running new SDI cabling.
- Live Events & Conferences: Convert HDMI presentation laptops, stage cameras and podium outputs to NDI at source — feeding production software, streaming encoders and confidence monitors over the venue network from a single compact device per source.
- Education & Lecture Capture: Encode HDMI lecture room cameras and presenter displays as NDI for lecture capture systems, live streaming and hybrid learning — with loop-through maintaining local display output and tally confirming capture status to the presenter.
- Corporate AV: Convert HDMI cameras and presentation outputs in meeting rooms and auditoriums to NDI for distribution to recording systems, streaming platforms and remote production endpoints over the corporate network.
Magewell Part Number: 64030. Full technical specifications are available on the Specifications tab above. NDI® is a trademark of Vizrt NDI AB. Tally light accessory included. Modator module version available separately.
