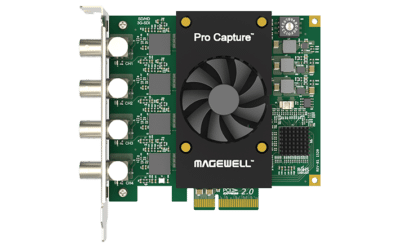

Magewell Pro Capture Quad SDI

£718.00

Magewell Part Number: 11090 Four-channel SDI Capture Card

  • Captures SD/HD/3G-SDI x 4

Description

The Magewell Pro Capture Quad SDI Card is a normal-profile PCIe Gen2 x4 card.  Allowing for capturing 4 channels of SDI input. The card supports multiple color sampling modes, 10- and 12-bit color depths, up to 8 audio channels at 48 kHz, and output resolutions up to 2048×2048 with frame rates up to 120 fps. The card is also capable of numerous video processing features, including cropping, scaling, de-interleaving, aspect ratio conversion, color format conversion, video frame rate conversion, and video OSD composition.

Magewell Pro Capture Quad SDI

Magewell Pro Capture Quad SDI Card supports multiple cards per system. Along with unlimited output streams with independently adjustable parameters per stream. Additional features include ultra-low latency, timestamp and A/V synchronization, and LED status indicators. The card supports both Windows, Linux, and Mac operating systems, multiple APIs for Windows and Linux, and provides Windows SDKs for easier integration.

How to use OBS Studio to record and stream along with Magewell capture devices – LINK

InterfaceVideo EngineSignal Detection & SupportSoftware Environment

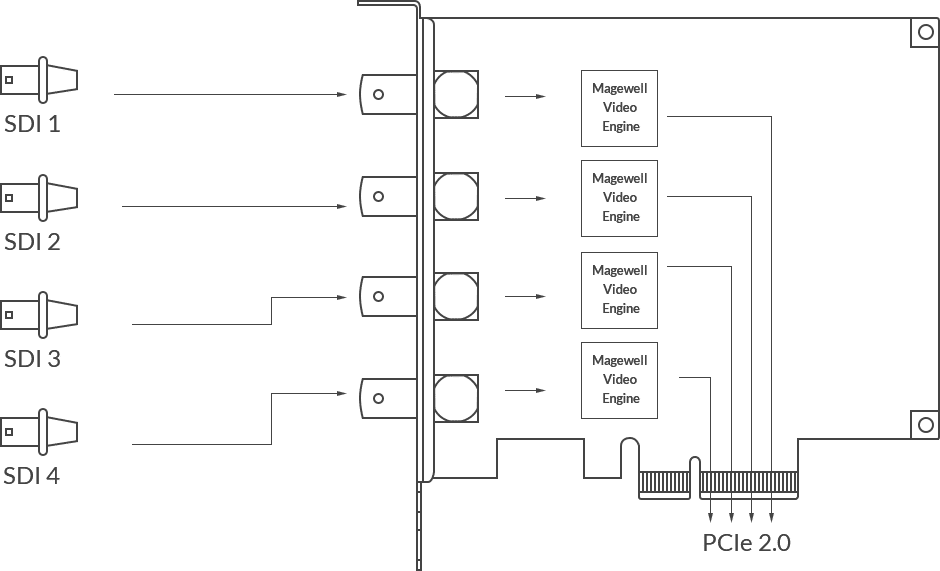

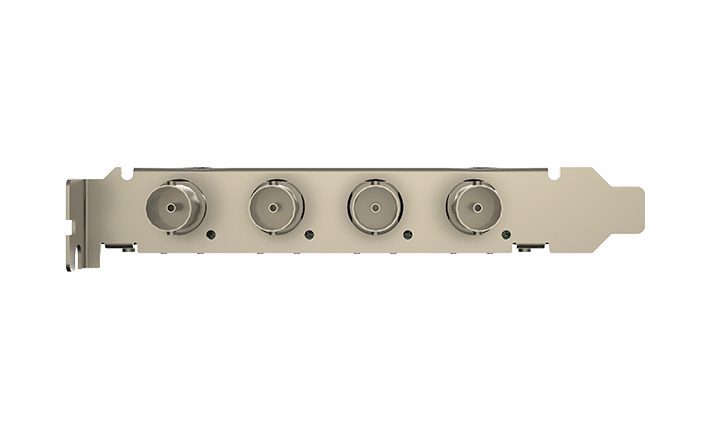

Input Interface
• SD/HD/3G/2K SDI x4
• Support input resolution up to 2048×1080 pixels

Loop-through Interface
• SD/HD/3G/2K SDI x2
• Support loop-through resolution up to 2048×1080 pixels

Host Interface
• PCIe Gen2 x4
10-bit video processing

Deinterlace

Cropping

Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

OSD

SG-DMA Transmission mode
Auto Detection of Input Signal Format

Time Code

Closed Caption
OS
• Windows, Linux, Mac

Driver and Firmware
• Universal Driver, Updatable Firmware

Included Software
• Pro Capture Utility, Capture Express

Compatible Software
50+
