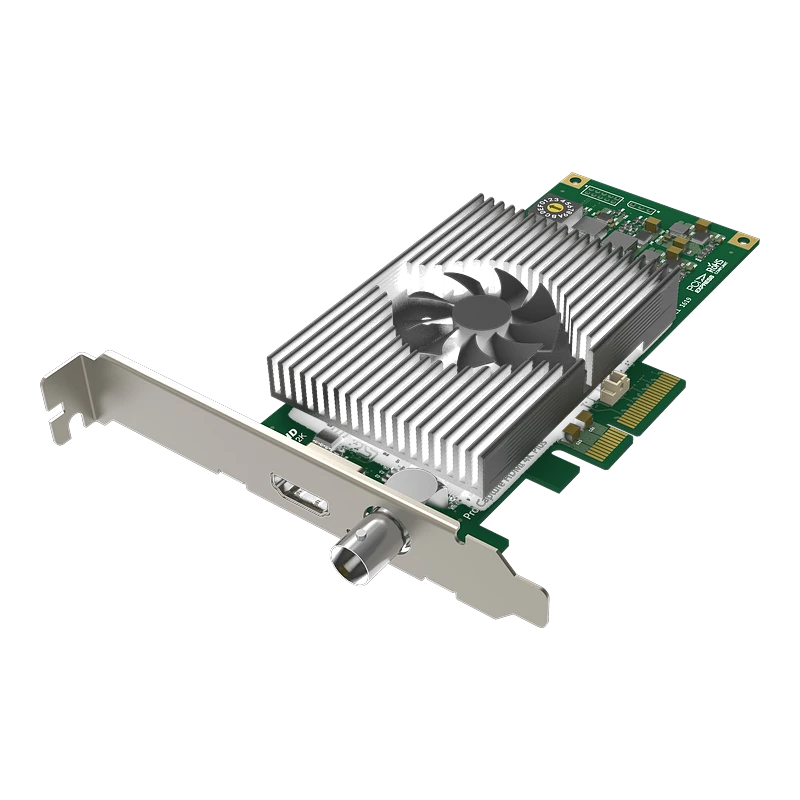

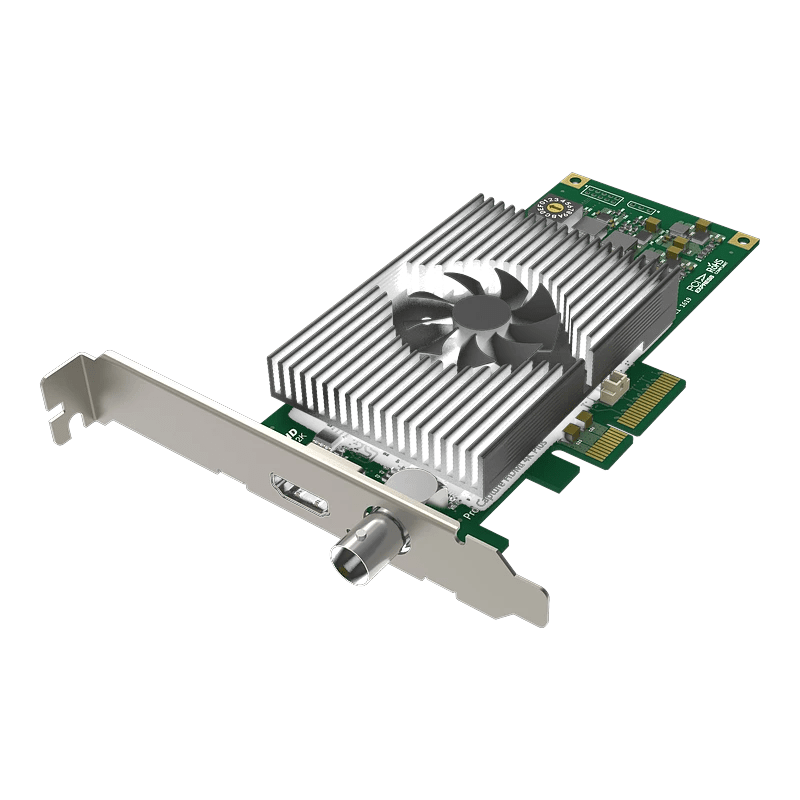

Pro Capture AIO 4K Plus

The Magewell Pro Capture AIO 4K Plus is a high-performance, single-channel PCIe capture card designed for professional workflows. It is highly versatile, offering both HDMI 2.0 and 6G-SDI inputs, making it an “All-in-One” (AIO) solution for high-end video capture.

• Dual‑Interface Input — Supports one channel of capture from either an HDMI 2.0 source (up to 4096×2160 at 60fps) or a 6G‑SDI source (up to 4096×2160 at 30fps).
• Advanced On‑Board Processing — Hardware engine handles scaling, colour‑space conversion, and de‑interlacing directly, significantly reducing CPU load on the host computer.
• Ultra‑Low Latency — Optimised for real‑time workflows with latency as low as 64 video lines, essential for live broadcast and medical imaging.
• Compatibility — Low‑profile PCIe x4 card that works seamlessly with Windows, macOS, and Linux, and integrates smoothly with OBS Studio, vMix, Wirecast, and other major software.

Applications

• Broadcasting — Ingesting 4K camera feeds into a laptop‑based production environment for live events.
• Medical — Capturing high‑resolution SDI feeds from 4K surgical cameras for archiving and remote consultation.
• Corporate — Using professional SDI cameras as high‑end webcams for executive video conferencing.
