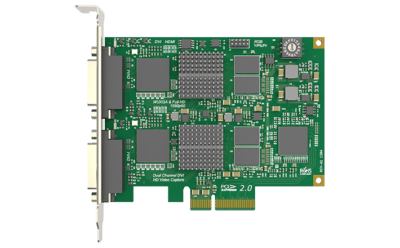

Magewell Pro Capture Dual DVI


Magewell Part Number: 11070 Two-channel HD Capture Card

  • DVI
  • VGA
  • Component
  • HDMI + embedded audio


Magewell Pro Capture Dual DVI is an ideal solution for applications that require the capture of HD or sources in real time. Typical applications include: Viewing HDMI or Analog sources from PCs, MACs, Industrial/medical equipment, cameras, game consoles and other video equipment. Also includes Streaming video or Broadcasting applications. Dual input video capture from a mix and match of DVI+ audio, VGA + audio, Component + audio and HDMI + embedded audio.

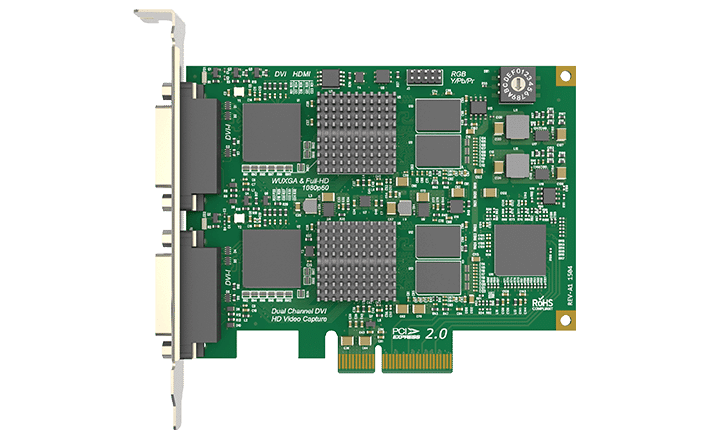

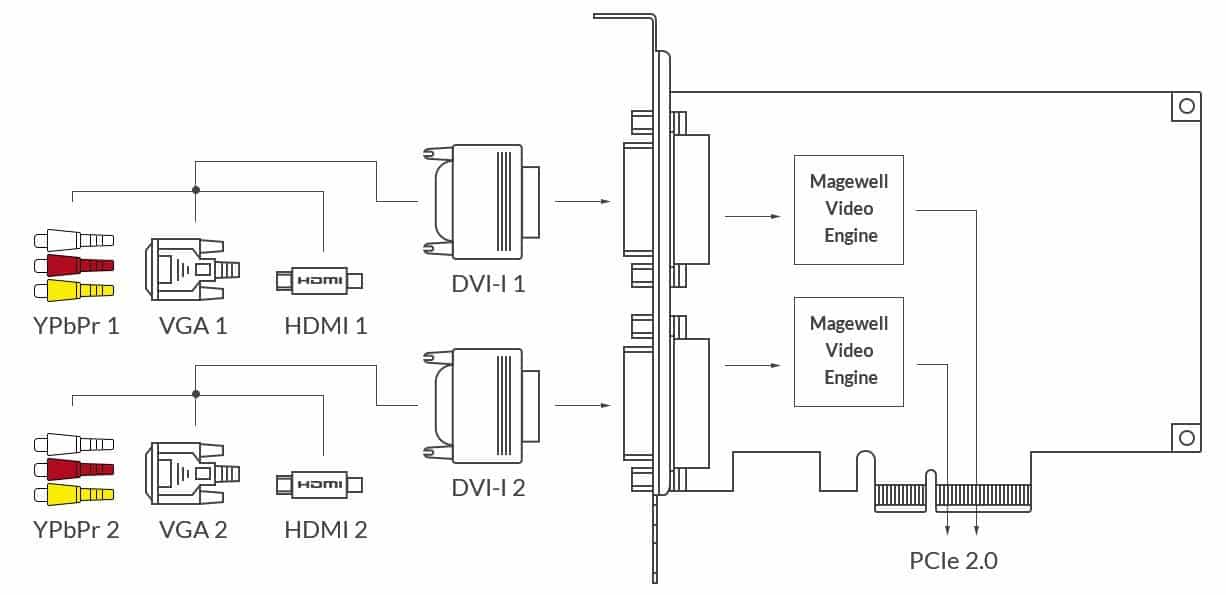

The Pro Capture Dual DVI HD Capture Card (Two Channels) is a normal-profile PCIe 2.0 x4 card.  Allowing for capturing two channels of DVI, VGA, Component, or HDMI + embedded audio via the two DVI inputs. Supplied breakout cables. The card supports various color sampling modes, color depths, color formats, up to 8 audio channels at 48 kHz (HDMI only). Output resolutions up to 2048 x 2048. Frame rates up to 120 fps. The card is also capable of numerous video processing features. Includes cropping, scaling, de-interleaving, aspect ratio conversion, color format conversion, video frame rate conversion, and video OSD composition.

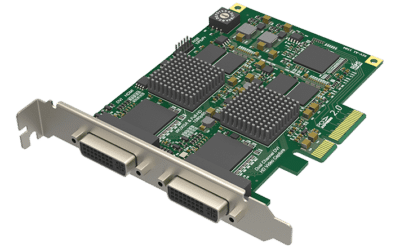

Magewell Pro Capture Dual DVI
Magewell Pro Capture Dual DVI supports multiple cards per system. Unlimited output streams for any one input channel. Independent adjustable parameters per stream. Additional features include ultra-low latency, timestamp and A/V synchronization. LED status indicators. The card supports both Windows, Mac, and Linux operating systems. Multiple APIs for Windows and Linux, and with Windows SDKs for easier integration.

Magewell Pro Capture Dual DVI multiple streaming at 60 fps – LINK

OSD Function of Magewell Pro Capture FamilyLINK

InterfaceVideo EngineSignal Detection & SupportSoftware Environment
Input Interface

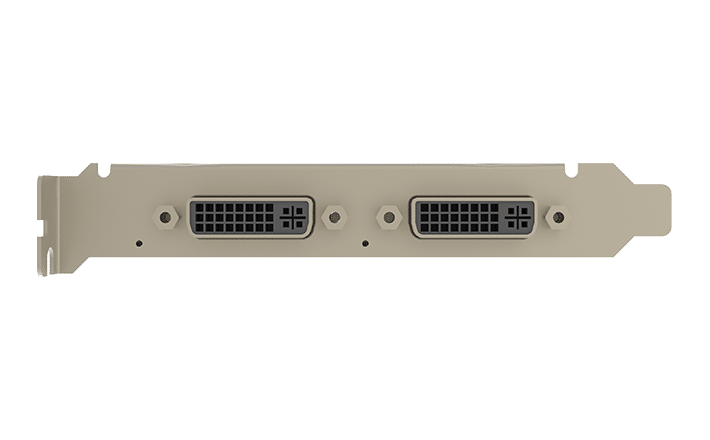

• DVI x2

Host Interface
• PCIe Gen2 x4
10-bit video processing



Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion


SG-DMA Transmission mode
Auto Detection of Input Signal Format


Time Code
• Windows, Linux, Mac

Driver and Firmware
• Universal Driver, Updatable Firmware

Included Software
• Pro Capture Utility, Capture Express

Compatible Software
