Description

Magewell Pro Capture SDI card is a low-profile PCIe 2.0 x1 card. Allowing for capturing one channel of SD/HD/3G-SDI input via a BNC connector. Also offering a loopback output on a BNC connector. The card supports numerous SDI formats and color sampling modes, a 2K mode (2048×1080), 10- and 12-bit color depths. Up to 8 audio channels at 48 kHz. Output resolutions up to 2048×2048. Frame rates up to 120 fps. Pro Capture SDI is also capable of numerous video processing features. Includes cropping, scaling, de-interleaving, aspect ratio conversion, color format conversion, video frame rate conversion, and video OSD composition Magewell Pro Capture SDI

Magewell Pro Capture SDI supports multiple cards per system and unlimited output streams with independently adjustable parameters per stream. Additional features include ultra-low latency, timestamp and A/V synchronization, and LED status indicators. The card supports Windows, Linux, and Mac operating systems, multiple APIs for Windows and Linux, and provides Windows SDKs for easier integration.

Interface	Video Engine	Signal Detection & Support	Software Environment
Input Interface • SD/HD/3G/2K SDI x1 • Support input resolution up to 2048×1080 pixels Loop-through Interface • SD/HD/3G/2K SDI x1 • Support loop-through resolution up to 2048×1080 pixels Host Interface • PCIe Gen2 x1	10-bit video processing Deinterlace Cropping Color Adjustment Hardware Timestamp Color Space Conversion Up/down Conversion Aspect Ratio Conversion OSD SG-DMA Transmission mode	Auto Detection of Input Signal Format Time Code Closed Caption	OS • Windows, Linux, Mac Driver and Firmware • Universal Driver, Updatable Firmware Included Software • Pro Capture Utility, Capture Express Compatible Software 50+

Specifications

Supported OS	Windows • Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) Linux (support x86, x64 & ARM architecture) • Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64) • CentOS 6.5/7 (x86 & x64) • Fedora 25/26/27 (x86 & x64) • Red hat 6.5 and above (x86 & x64) • Other Linux OS with kernel version 2.6.35 and above Mac • OS X 10.9/10.10/10.11 • macOS 10.12/10.13
Recommended OS (tested)	Windows • Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64) Linux • Ubuntu 12.04/14.04/16.04 (x86 & x64) • Ubuntu 17.04/17.10 (x64) • CentOS 6.5/7.2 (x86 & x64) • Fedora 25/26 (x64) • Red hat 6.5 (x86 & x64) Mac • OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4 • macOS 10.12/10.13.2/10.13.3
Supported APIs	Windows • DirectShow • DirectKS • Wave API/DirectSound/WASAPI Linux • V4L2 • ALSA
Supported Software	VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow/V4L2 encoding/streaming software
Input Interfaces	BNC • SD/HD/3G SDI
Host Interface	PCIe Gen2 x1
Loop-through Interfaces	BNC • SD/HD/3G SDI
Input features	Support for input video resolutions up to 2048x1080 pixels
SDI Specific Features	Integrated cable equalizer supporting cable lengths up to 230M for HD signals Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards Support for 2K (2048x1080) mode Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling Support for 10/12-bit color depth Support for extraction of SMPTE 352 payload identifier Support for up to 8 (mono) audio channels at 48KHz (channels 1–8 from the 16 available in the SDI spec) Support for extraction of audio formation information & channel status data Limited support of 3Gb-DS: only the first stream can be captured Limited support for capture of the first link of dual link interfaces: • YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60 • YCbCr 4:4:4 10-bit: captured as 4:2:2 • RGB 4:4:4: R/B sub-sampled Support for Closed Caption
Video Capture Formats	Support for capture image resolutions up to 2048x2160 pixels Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth, and at higher image resolutions - above 1280x1024 - by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920x1080 = ~80fps. ) Support for 4:2:0 8-bit capture formats: NV12, I420, YV12 Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32 Support for 4:4:4 10-bit capture formats: V410, Y410 More capture formats are supported via Magewell Capture SDK for DirectKS
Video Processing Features	Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one Full 10-bit video processing Video cropping Video scaling Video de-interlacing • Weave • Blend top & bottom field • Top field only • Bottom field only Video aspect ratio conversion • Auto or manual selection of input aspect ratio • Auto or manual selection of capture aspect ratio • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) Video color format conversion • Auto or manual selection of input color format & quantization range • Auto or manual selection of capture color format, quantization range & saturation range • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats • Support for Limited or Full quantization range • Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate conversion Video OSD composition • Support for PNG OSD image (up to 2048x2160) • Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per System	Support for multiple cards plugged to one system On-board rotary switch to set card number, with 16 positions from 0 to F System hardware device tree will display “01: Pro Capture SDI” when rotary switch is set to 1, and so on The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Capture Streams	Unlimited capture streams for any one input channel Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream
Ultra Low Latency Support	Latency of 64 video lines Partial notification mode in SDK
Timestamp & A/V Synchronization	Hardware based 100ns high resolution clock Audio frames (192 audio samples) & video frames are stamped with hardware clock Hardware clock can be synchronized across cards (via SDK)
Video Capture SG-DMA	~400MB/s per channel DMA bandwidth in PCIe 2.0 system ~200MB/s per channel DMA bandwidth in PCIe 1.0 system Support for auto detection of Intel tiled GPU surface Support for DirectGMA for AMD video adapter chipsets Support for GPUDirect for Nvidia video adapter chipsets
SDK	Magewell Capture SDK for DirectShow for easy integration (Windows) Magewell Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver Tweaks	All options can be controlled by three levels of registry key: global level, product level and device level Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade	Multiple cards in one system can be upgraded simultaneously Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed) Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.
LED Indicator	Status LEDs indicate the working state of each channel: • Pulsing slowly: idle • On: input signal locked • Off: input signal unlocked • Double blinks: memory failed or FPGA configuration failed
Form Factor	Low profile PCIe x1 Add-on Card 87.68mm x 68.88mm (without PCI bracket)

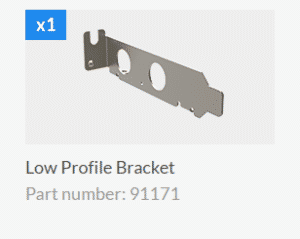

Accessories	Low Profile bracket.
Power Consumption	Max current at 12V: ~ 0.32 A Max current at 3.3V: ~ 0.17 A Max power consumption: ~ 4.45 W
Working Environment	Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing
