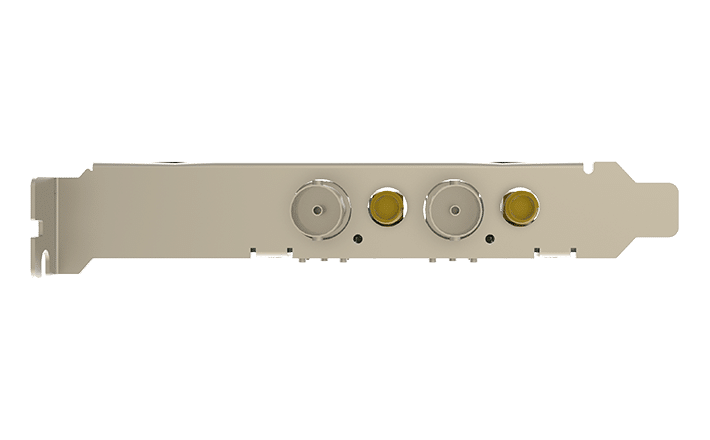

Magewell Pro Capture Dual SDI

£399.00

Magewell Part Number: 11060 Dual channel SDI Capture Card

  • Captures SD / HD / 3G-SDI x2
  • Loopback: SD / HD / 3G-SDI x2



Description

Magewell Pro Capture Dual SDI card is a low-profile PCIe Gen2 x4 card.  Allowing for capturing 2 channels of SDI input. The card supports multiple color sampling modes, 10- and 12-bit color depths. Up to 8 audio channels at 48 kHz.  Output resolutions up to 2048×2048 with frame rates up to 120 fps. Pro capture dual sdi is also capable of numerous video processing features. This includes cropping, scaling, de-interleaving, aspect ratio conversion, color format conversion, video frame rate conversion, and video OSD composition. Magewell Pro Capture Dual SDI
Magewell Pro Capture Dual SDI Card supports multiple cards per system. Unlimited output streams with independently adjustable parameters per stream. Additional features include ultra-low latency, timestamp and A/V synchronization, and LED status indicators. Pro capture dual sdi card supports both Windows, Linux, and Mac operating systems. Multiple APIs for Windows and Linux. Provides Windows SDKs for easier integration

InterfaceVideo EngineSignal Detection & SupportSoftware Environment
Input Interface
• SD/HD/3G/2K SDI x2
• Support input resolution up to 2048×1080 pixels

Loop-through Interface
• SD/HD/3G/2K SDI x2
• Support loop-through resolution up to 2048×1080 pixels

Host Interface
• PCIe Gen2 x4
10-bit video processing

Deinterlace

Cropping

Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

OSD

SG-DMA Transmission mode
Auto Detection of Input Signal Format

Time Code

Closed Caption
OS
• Windows, Linux, Mac

Driver and Firmware
• Universal Driver, Updatable Firmware

Included Software
• Pro Capture Utility, Capture Express

Compatible Software
50+
