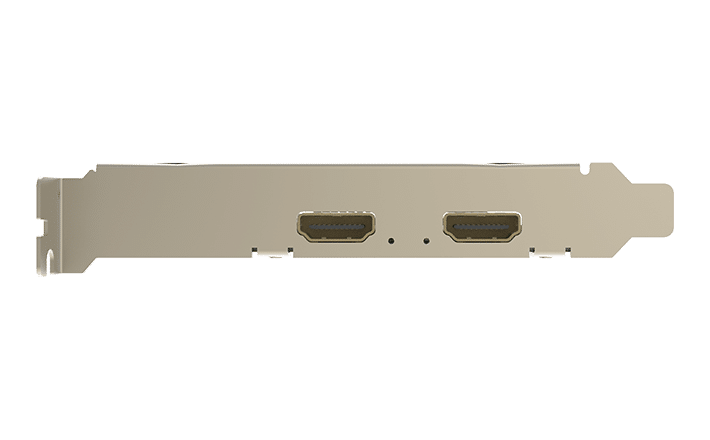

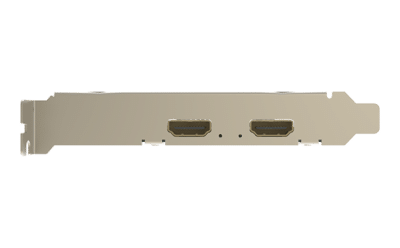

Magewell Pro Capture Dual HDMI


Magewell Part Number: 11080 Two channel HD Capture Card

  • HDMI + embedded audio x2


Magewell Pro Capture Dual HDMI is an ideal solution for applications that require the capture of dual HDMI sources plus embedded audio (x2) in real time. Typical applications include: Viewing HDMI sources from PCs, MACs, Industrial/medical equipment, cameras, game consoles and other video equipment. Also includes Streaming video or Broadcasting applications.

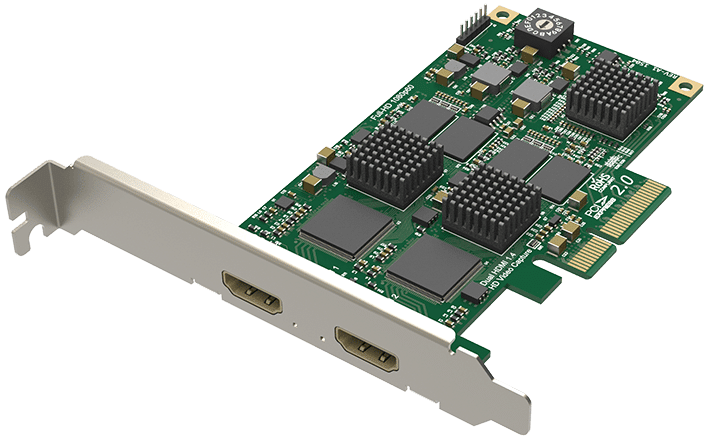

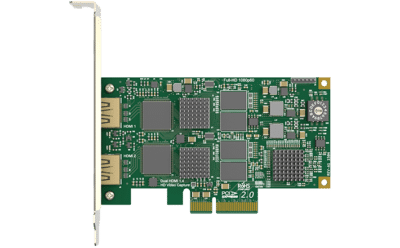

Magewell Pro Capture Dual HDMI Card is a low-profile PCIe x4 card. Allows for capturing 2 channels of HDMI input. The card supports multiple color sampling modes, 10- and 12-bit color depths. Up to 8 audio channels at 48 kHz. Output resolutions up to 2048×2048. Frame rates up to 120 fps. The card is also capable of numerous video processing features which includes cropping, scaling, de-interleaving, aspect ratio conversion, color format conversion, video frame rate conversion, and video OSD composition.
Magewell Pro Capture Dual HDMI
Magewell Pro Capture HDMI Card supports multiple cards per system. Unlimited output streams with independently adjustable parameters per stream. Additional features include ultra-low latency, timestamp and A/V synchronization, and LED status indicators. The card supports both Windows, Linux, and Mac operating systems. Multiple APIs for Windows and Linux. Provided Windows SDKs for easier integration.

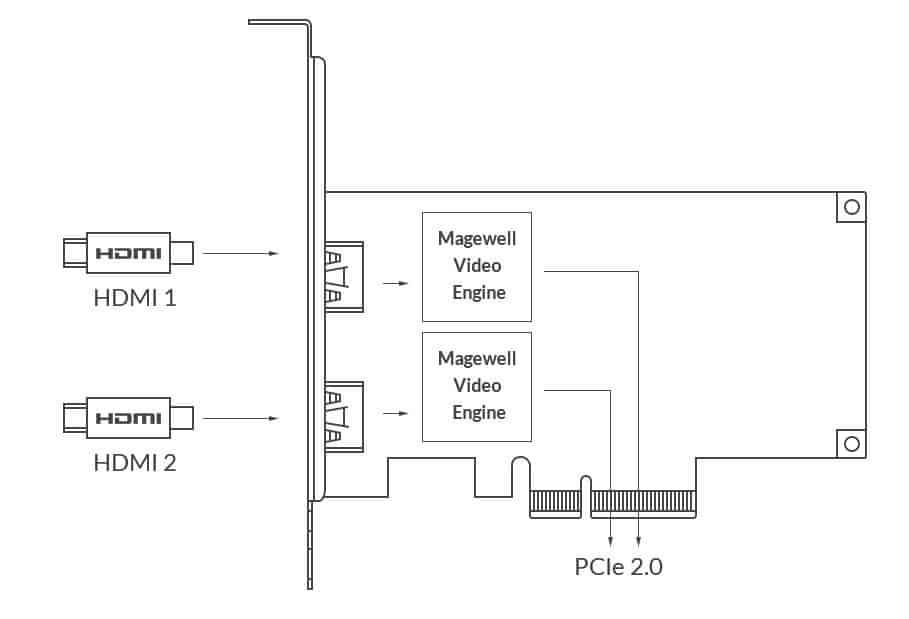

InterfaceVideo EngineSignal Detection & SupportSoftware Environment
Input Interface
• HDMI x2
• Support input resolution up to 2048×2160 pixels

Host Interface
• PCIe Gen2 x4
10-bit video processing



Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion


SG-DMA Transmission mode
Auto Detection of Input Signal Format


Time Code
• Windows, Linux, Mac

Driver and Firmware
• Universal Driver, Updatable Firmware

Included Software
• Pro Capture Utility, Capture Express

Compatible Software
