Magewell Pro Capture HDMI


Magewell Part Number: 11040 One channel HD or SD Capture Card

  • Component + audio
  • Composite + audio
  • S-video + audio
  • HDMI + embedded audio


One of our popular products, the Pro Capture HDMI is an ideal solution for applications that require the capture of HD or sources in real time. Typical applications include: Viewing HDMI or Analog sources from PCs, MACs, Industrial/medical equipment, cameras, game consoles and other video equipment. Also includes Streaming video or Broadcasting application.

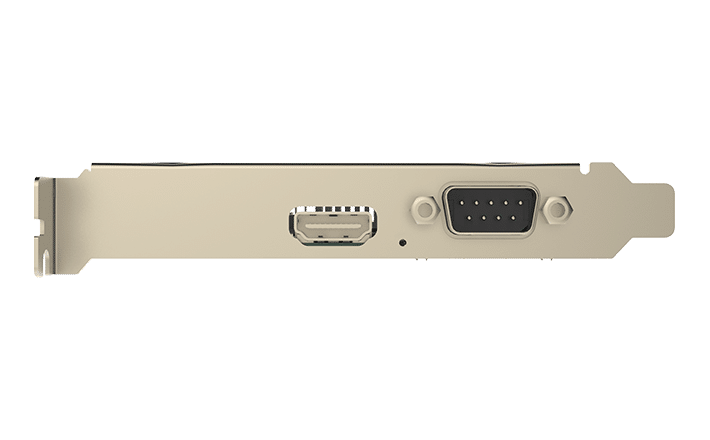

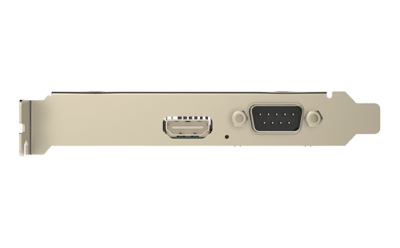

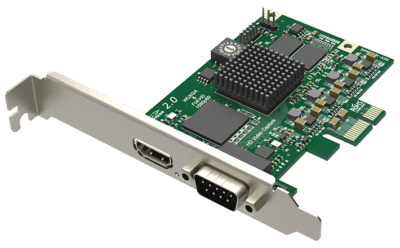

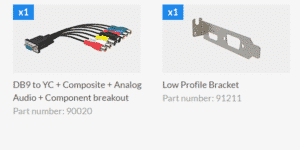

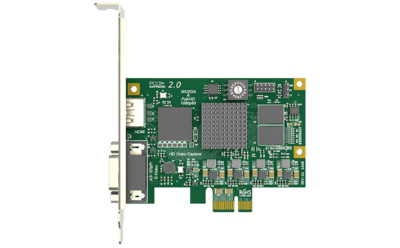

Magewell Pro Capture HDMI card is a low-profile PCIe x1 card. Allows for capturing a single channel of HDMI input. It supports capturing component plus audio, composite plus audio, and S-video plus audio via the included DB-9 breakout cable. It supports HDMI plus embedded audio via the HDMI port.
Magewell Pro Capture HDMI
Magewell Pro Capture HDMI card supports multiple color sampling modes, 10-bit and 12-bit color depths. Up to 8 audio channels at 48 kHz. Output resolutions up to 2048 x 2160. Frame rates up to 120 fps. It is capable of numerous video processing features including cropping, scaling, de-interleaving, aspect-ratio conversion, color-format conversion, video-frame-rate conversion, and video OSD composition.
Magewell Pro Capture HDMI Card supports multiple cards per system. Unlimited output streams. Independently adjustable parameters per stream. Additional features include ultra low latency, timestamp and A/V synchronization, and LED status indicators. The card supports Windows, Linux, and Mac operating systems. Multiple APIs for Windows and Linux. Provided Windows SDKs for easier integration.
InterfaceVideo EngineSignal Detection & SupportSoftware Environment
Input Interface
• HDMI x1
• DB9 x1
• Support input resolution up to 2048×2160 pixels

Host Interface
• PCIe Gen2 x1
10-bit video processing



Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion


SG-DMA Transmission mode
Auto Detection of Input Signal Format


Time Code
• Windows, Linux, Mac

Driver and Firmware
• Universal Driver, Updatable Firmware

Included Software
• Pro Capture Utility, Capture Express

Compatible Software
