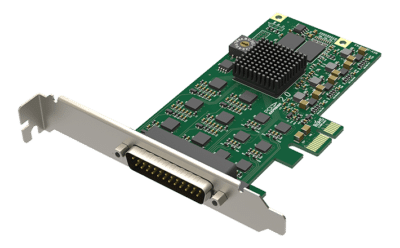

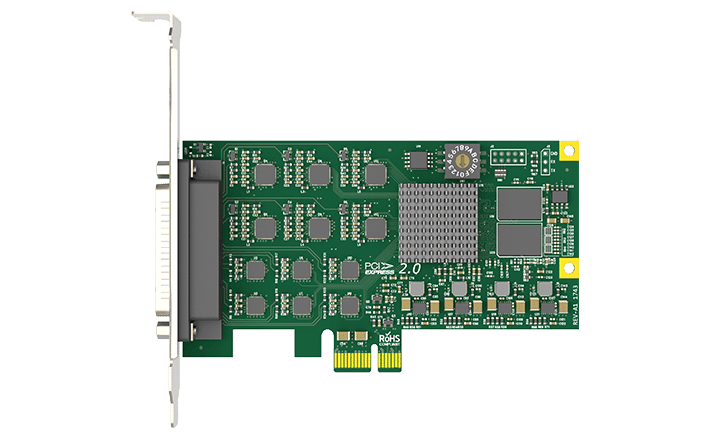

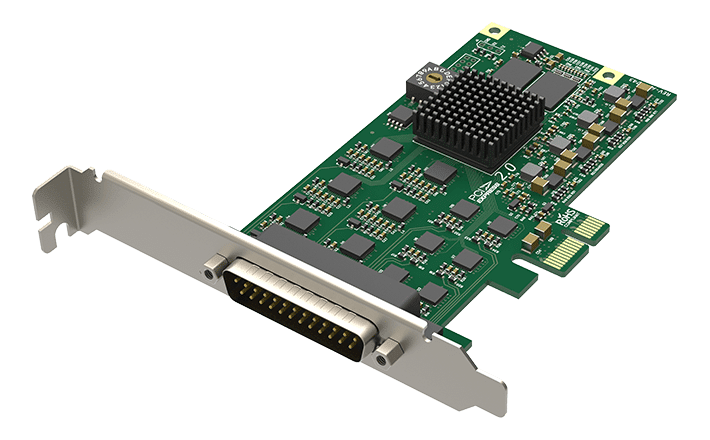

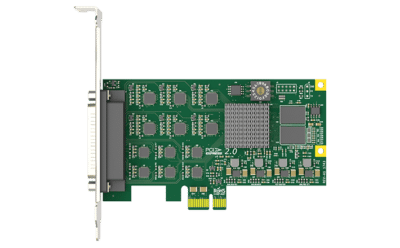

Magewell Pro Capture Hexa CVBS


Magewell Part Number: 11250 Six channel SD Capture Card

  • CVBS (Video + Audio) x6


The Pro Capture Hexa CVBS captures six channels of CVBS video and six unbalanced stereo audio pairs over a PCI Express 2.0 x1 host interface. Magewell’s second generation of analog PCIe capture card, enables users to cost-effectively convert analog source signals into high-quality digital video and audio data for recording or processing with the latest software. Magewell Pro Capture Hexa CVBS FPGA-based video processing on the Pro Capture Hexa CVBS provides high-quality de-interlacing, image adjustments, scaling and PAL/NTSC frame rate conversion without tasking the host system’s CPU. The new model also adds powerful features not available on Magewell’s earlier-generation analog capture card, including graphic overlay, support for CEA-608/EIA-608 closed captions, and ultra-low latency as little as 64 video lines.
InterfaceVideo EngineSignal Detection & SupportSoftware Environment

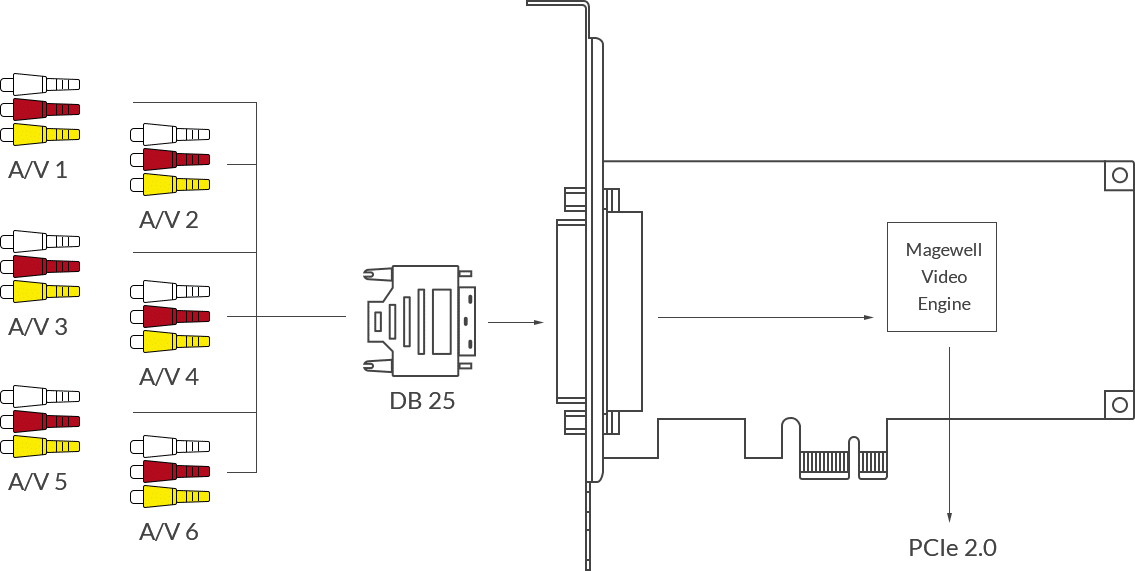

Input Interface

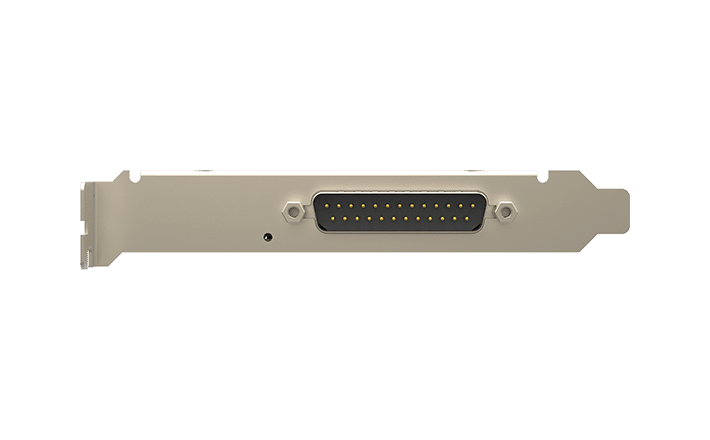

• DB25 x1
• Support input resolution up to 720×576 pixels

Host Interface
• PCIe Gen2 x1


Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion


SG-DMA Transmission mode

SG-DMA Transmission mode
Auto Detection of Input Signal Format

Time Code
• Windows, Linux, Mac

Driver and Firmware
• Universal Driver, Updatable Firmware

Included Software
• Pro Capture Utility, Capture Express

Compatible Software
