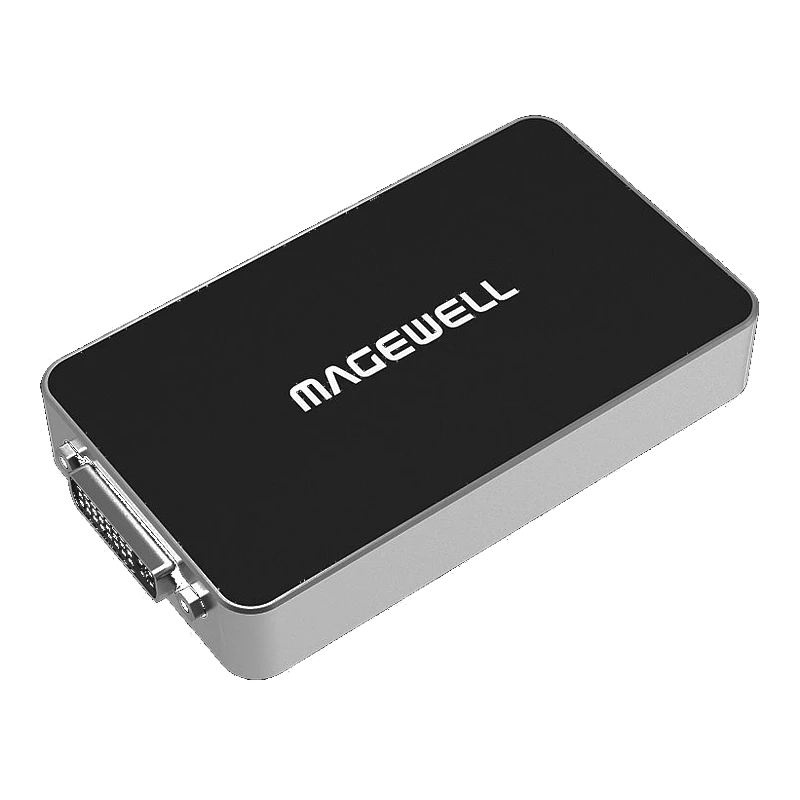

USB Capture DVI Plus

The Magewell USB Capture DVI Plus is a professional single-channel USB 3.0 capture device built specifically for DVI signal sources — the capture solution of choice for medical imaging workstations, financial trading terminals, industrial displays and legacy AV installations where DVI remains the primary or only output interface. Accepting DVI 1.0 directly on its DVI-I input with a dedicated DVI loop-through output, it also accepts HDMI 1.4a via the included breakout cable, and extends further to VGA and Component via the included adapters — all in a compact, bus-powered dongle that connects to any Windows, Mac, Linux or Chrome OS computer with no drivers and no external power. With onboard FPGA processing handling scaling, de-interlacing, aspect ratio conversion and colour format conversion entirely off the host CPU, and 3.5mm analogue audio in and out for complete audio capture alongside video, the USB Capture DVI Plus delivers reliable, flexible DVI capture wherever it is needed. Supplied by iView Data, authorised UK Magewell distributor, with full UK warranty and same-day dispatch from UK stock.

Core Functions & Capabilities

• DVI Input with DVI Loop-Through — Insert Into Any DVI Signal Chain: The DVI-I input accepts DVI 1.0 signals directly, and the dedicated DVI loop-through output passes the source signal simultaneously to a local monitor or downstream display — inserting the capture device into the existing DVI chain without interrupting it, without a splitter and without any impact on the downstream display.
• HDMI, VGA & Component via Included Adapters: The DVI-I port accepts HDMI 1.4a via the included DVI-I to HDMI + Component breakout cable, and VGA via the included DVI-to-VGA connector — making the device useful wherever a source outputs DVI, HDMI or analogue video, without needing separate capture hardware for each.
• Up to 2048×2160 Capture at 120fps: The 160 Mpixels/s onboard FPGA processing pipeline delivers capture at resolutions up to 2048×2160 at up to 120fps — with all scaling, cropping, de-interlacing, aspect ratio conversion, colour format conversion, frame rate conversion, flip and mirror processed entirely on the device, consuming zero host CPU.
• Custom EDID Support: Configurable EDID enables the device to negotiate the precise resolution and signal format required by the capture software from any DVI or HDMI source — critical in medical and industrial environments where the source output format must be exactly controlled and cannot be left to auto-negotiation.
• 12-bit ADC for VGA & Component: The 12-bit analogue-to-digital converter handles RGB and YCbCr colour formats with separated sync, composite sync, sync-on-green and sync-on-luminance support — covering DMT, CEA, CVT, GTF and custom CVT/GTF video timings up to 165MHz pixel rate at 1:1 sampling.
• 3.5mm Analogue Audio In & Out: Captures analogue audio via 3.5mm microphone/line input alongside video, and outputs captured HDMI embedded audio or host computer playback audio via the 3.5mm line output — functioning as a complete USB audio card without any additional hardware.
• USB Bus-Powered — No External Power Required: Draws just 3W maximum from the USB 3.0 port — the lowest power consumption of any USB Capture Plus model — making it straightforward to deploy on medical carts, laptop-based production kits and environments where additional mains cabling is impractical.

Key Features

• Universal OS & Driver-Free Operation: Works plug-and-play on Windows 10/11/Server, macOS 10.9+, Linux (x86, x64 & ARM, kernel 2.6.35+) and Chrome OS — no driver installation required for basic use on any supported platform.
• Broad Software Compatibility: Compatible with Zoom Rooms, Microsoft Teams, Skype for Business, Google Meet, GoToMeeting, OBS Studio, XSplit, VLC, QuickTime and all DirectShow, V4L2 and AVCaptureSession applications.
• MWCapture SDK: Full SDK available for Windows, macOS and Linux — enabling custom integrations, OEM development, signal status extraction, capture configuration and direct API access for enterprise and medical deployments requiring custom software workflows.
• USB Capture Utility: Included free software for parameter configuration, EDID setting, flip/mirror, firmware upgrade and diagnostics across Windows, Mac and Linux.
• LED Status Indicator: Onboard LED shows signal lock, memory state and firmware condition at a glance — essential for quick status verification in rack and cart installations where the device may not be directly visible.
• Compact Form Factor — 101.5 × 56.8 × 17mm: The slimmest dongle in the USB Capture Plus range — fits directly on a DVI port with minimal protrusion, ideal for medical workstations and financial terminals where desk space and cable management are at a premium.

Ideal For

• Medical Imaging — DVI Diagnostic Displays & Surgical Systems: Capture from DVI-equipped ultrasound machines, endoscopy systems, radiology workstations and patient monitoring displays for telemedicine, procedure documentation and clinical image archiving — with the loop-through maintaining the existing display connection uninterrupted.
• Financial Trading — Multi-Monitor DVI Terminals: Capture DVI output from trading terminals, market data displays and financial workstations for compliance recording, training, remote monitoring and screen-sharing without disrupting the live trading display chain.
• Legacy AV Integration — DVI Presentation Systems: Insert directly into existing DVI signal paths in lecture theatres, boardrooms and conference facilities to add capture and streaming capability to infrastructure that predates HDMI — without replacing any existing cabling or display equipment.
• Industrial & Control Room Displays: Capture from DVI-output industrial monitors, SCADA displays, HMI systems and control room workstations for remote monitoring, incident recording and operator training — bus-powered operation simplifying installation where mains outlets are limited.
• Video Conferencing — DVI Sources on Zoom & Teams: Connect any DVI camera, document camera or workstation to Zoom Rooms or Microsoft Teams on any laptop — replacing a built-in webcam with a professional DVI signal source for clearer, more reliable video conferencing in clinical and enterprise environments.
• Lecture Capture & Education: Capture DVI output from legacy lecture room PCs, document cameras and interactive whiteboards directly into lecture capture systems or OBS — with the loop-through continuing to feed the room display simultaneously.

USB Capture Family — Which Model Is Right for You?

HD capture — no loop-through needed

HD capture — with loop-through & analogue audio

4K capture — USB 3.0 (up to 4K30 capture)

4K capture — USB 3.2 Gen 2×2 (true 4K60 capture)

Multi-source switching

Magewell Part Number: 32080. Full technical specifications are available on the Specifications tab above. DVI-to-VGA connector and DVI-I to HDMI + Component breakout cable included. MWCapture SDK available separately. Supplied by iView Data, authorised UK Magewell distributor, with full UK warranty and same-day UK dispatch.
