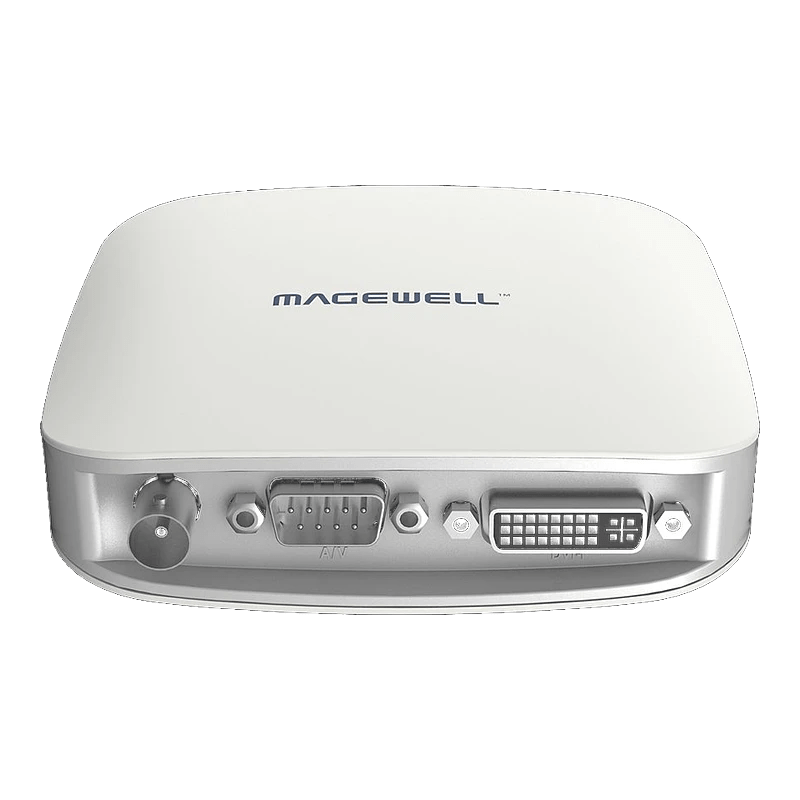

USB Capture AIO

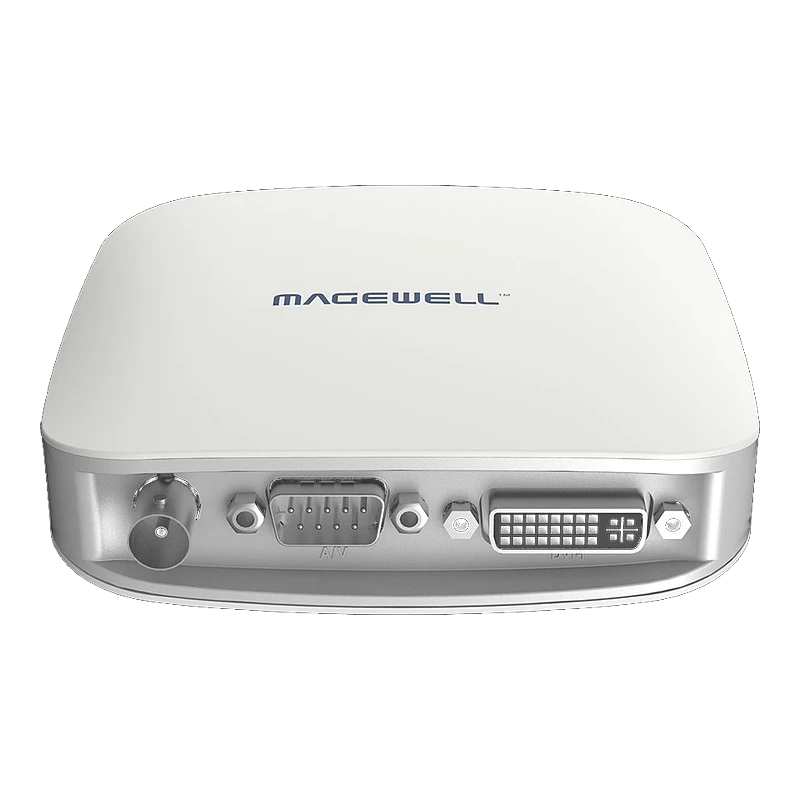

The Magewell USB Capture AIO is the most versatile single-channel capture device in the USB Capture family — the only model that accepts virtually every video signal format in a single compact, bus-powered dongle. With a DVI-I input supporting HDMI, VGA and Component via breakout cable, a dedicated BNC input for SD/HD/3G-SDI, and a DB9 connector for Composite, S-Video and analogue audio, the AIO captures from broadcast cameras, legacy AV equipment, medical devices and computer sources all from one device. Connecting via USB 3.0 to any Windows, Mac, Linux or Chrome OS computer with no drivers, no external power and no PCIe slot required, it delivers up to 2K capture at up to 120fps with full onboard video processing. For system integrators, AV professionals and broadcast engineers who need a single USB capture solution that handles any signal they can throw at it — the USB Capture AIO is that device. Supplied by iView Data, authorised UK Magewell distributor, with full UK warranty and same-day dispatch from UK stock.

Core Functions & Capabilities

• Six Input Types in One Device — HDMI, SDI, DVI, VGA, Component, Composite & S-Video: The DVI-I port accepts HDMI 1.4a and DVI via a breakout cable, and VGA via an included DVI-to-VGA connector. The BNC port handles SD/HD/3G-SDI. The DB9 port accepts Component, Composite and S-Video via an included breakout cable. No other USB capture device in the range covers this breadth of signal types.
• 2K Capture at up to 120fps: Captures at resolutions up to 2048×2160 at up to 120fps via a 160 Mpixels/s onboard processing pipeline — entirely on the device’s FPGA, offloading zero processing from the host computer’s CPU.
• SD/HD/3G-SDI Capture with Cable Equaliser: Accepts SD (ST 259), HD (ST 292), 3Ga and 3Gb SDI signals at up to 2048×1080 60fps with an integrated cable equaliser supporting SDI cable runs up to 150m — making it suitable for professional broadcast and live production environments, not just desktop use.
• Full Analogue Signal Support — Including Legacy Formats: Captures Component, Composite and S-Video via the DB9 breakout with support for NTSC, PAL and SECAM standards, auto-detecting the input standard. Ideal for legacy tape output, archive digitisation and older broadcast equipment.
• 12-bit ADC for VGA & Component: The 12-bit analogue-to-digital converter handles RGB and YCbCr colour formats, separated sync, composite sync, sync-on-green and sync-on-luminance — supporting DMT, CEA, CVT, GTF and custom CVT/GTF video timings up to 165MHz pixel rate at 1:1 sampling.
• Onboard Video Processing: Scaling, cropping, de-interlacing, aspect ratio conversion, colour format conversion, frame rate conversion, flip and mirror — all handled on the device. Three aspect ratio modes: Ignore (Anamorphic), Cropping or Padding (Letterbox/Pillarbox).
• USB Bus-Powered — No External Power Required: Draws power entirely from the USB 3.0 port at max 5W — no power adapter, no mains connection, no additional cabling. Fully portable and field-deployable on any laptop or workstation.
• Analogue Audio Capture: Captures stereo analogue audio via the 3.5mm LINE IN on the DB9 breakout alongside video — essential for legacy analogue sources and production environments where embedded digital audio is not available.

Key Features

• Universal OS & Driver-Free Operation: Works plug-and-play on Windows 10/11/Server, macOS 10.9+, Linux (x86, x64 & ARM, kernel 2.6.35+) and Chrome OS — no driver installation required for basic use on any supported platform.
• Broad Software Compatibility: Compatible with Zoom Rooms, Microsoft Teams, Skype for Business, Google Meet, GoToMeeting, OBS Studio, XSplit, VLC, QuickTime and all DirectShow, V4L2 and AVCaptureSession applications — including vMix, Wirecast and GStreamer.
• HDMI Custom EDID: Configurable EDID enables the device to negotiate the exact resolution and format required by the capture software from any HDMI source — critical for professional installations where source output must be precisely controlled.
• MWCapture SDK: Full SDK available for Windows, macOS and Linux — enabling custom integrations, OEM development, signal status extraction, capture configuration and direct API access for enterprise deployments.
• USB Capture Utility: Included free software for Windows, Mac and Linux for setting capture parameters, EDID configuration, flip/mirror settings, firmware upgrade and device diagnostics.
• LED Status Indicator: Onboard LED shows signal lock status, memory state and firmware condition at a glance — pulsing for unlocked signal, solid on for locked, double blink for hardware error.
• Compact Form Factor: 116 × 116 × 32mm — small enough to sit on a desk or ship in a field kit. Suitable for permanent installation or mobile production workflows.

Ideal For

• System Integration — Multi-Format AV Estates: The single USB capture device that handles every signal type in a legacy or mixed AV estate — connect HDMI displays, SDI cameras, VGA projectors, Component players and Composite sources all from one device per capture workstation.
• Broadcast & Live Production — SDI Camera to Laptop: Capture SDI programme output or camera feeds from up to 150m away directly into OBS, vMix, Wirecast or any DirectShow application on a laptop — no PCIe card, no rackmount hardware, no power brick required.
• Legacy Archive & Digitisation: Capture from VHS, Betacam, U-matic or any legacy analogue source via Composite or S-Video with NTSC/PAL/SECAM auto-detection — digitising archive content directly into editing software without specialist hardware.
• Medical Imaging — Multi-Source Capture: Capture from HDMI-equipped ultrasound machines, SDI surgical cameras and VGA legacy diagnostic monitors all from the same device — critical where clinical environments contain equipment from multiple generations and manufacturers.
• Video Conferencing & Hybrid Events: Replace a built-in webcam with any professional HDMI or SDI camera on Zoom, Teams or Google Meet — delivering dramatically sharper video for client-facing and conference calls from any laptop, certified compatible with Zoom Rooms and Microsoft Teams.
• Education & Lecture Capture: Capture from HDMI laptops, SDI cameras and VGA legacy document cameras or visualisers simultaneously selectable from a single device — ideal for lecture recording, hybrid classrooms and AV-over-IP integration.

USB Capture Family — Which Model Is Right for You?

HD capture — no loop-through needed

HD capture — with loop-through & analogue audio

4K capture — USB 3.0 (up to 4K30 capture)

4K capture — USB 3.2 Gen 2×2 (true 4K60 capture)

Multi-source switching

Magewell Part Number: 32110. Full technical specifications are available on the Specifications tab above. DVI-to-VGA connector, DVI-I to HDMI + Component breakout and DB9 to YC + Composite + Analogue Audio + Component breakout all included. MWCapture SDK available separately. Supplied by iView Data, authorised UK Magewell distributor, with full UK warranty and same-day UK dispatch.
