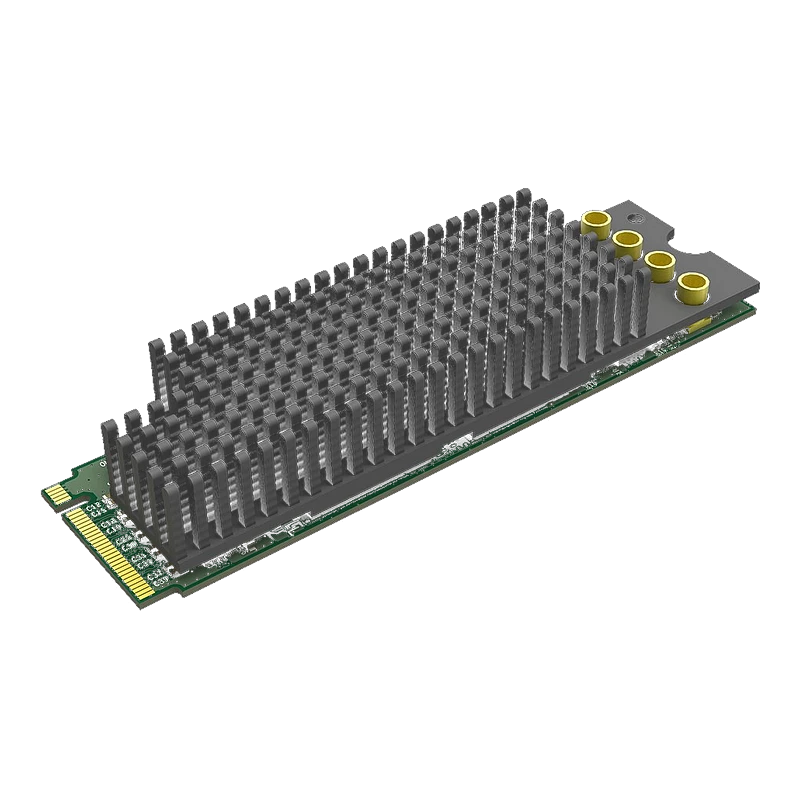

Eco Capture Quad SDI M.2

The Magewell Eco Capture Quad SDI M.2 is a professional-grade, multi-channel internal capture card designed for high-density video acquisition. It packs four independent SDI processing pipelines into an ultra-compact M.2 form factor, making it the premier choice for multi-camera setups where traditional PCIe space is unavailable.

Core Functions & Capabilities

• Quad-Channel HD Capture: Simultaneously captures four independent channels of video up to 2048×1080 (2K) or 1080p60 per channel.

• High-Density M.2 Interface: Utilizes a standard M.2 2280 (Type M) slot with PCIe Gen2 x4 bandwidth, allowing for 4-channel capture on motherboards and small-form-factor PCs (like Intel NUCs) that lack full-size expansion slots.

• FPGA Video Engine: Performs high-quality up/down scaling, color space conversion, and de-interlacing directly on the card’s hardware, significantly reducing the host CPU’s workload.

• Robust Signal Support: Automatically detects SD, HD, and 3G-SDI standards across all four inputs, ensuring a “plug-and-play” experience with diverse professional sources.

Key Features for Performance

• Space & Power Efficiency: Measures only 22x80mm and consumes up to 70% less power than standard PCIe cards, making it ideal for thermally sensitive or fanless enclosures.

• Stream Replication: Allows each of the four inputs to be delivered to multiple software applications simultaneously (e.g., one for recording, one for streaming, and one for local preview) without extra processing overhead.

• MMCX to BNC Connectivity: Uses high-retention MMCX connectors on the card, with four included breakout cables that provide standard BNC female ports for secure, professional cabling.

• Embedded Audio: Supports up to 8 channels of embedded audio per SDI input (32 channels total across the card), perfect for multi-language broadcasts or complex audio monitoring.

Flexibility for Organizations & Domestic Users

• Broadcast & Live Production

  • Function: Enables a tiny, portable PC to act as a 4-camera switcher for mobile production kits or “Outside Broadcast” (OB) fly-packs.

  • Flexibility: Native support for professional software like vMix, Wirecast, and OBS allows users to build a complete 4-camera production studio that fits in a backpack.

• Medical Training & Telemedicine

  • Function: Captures multiple views simultaneously—such as a surgical camera, a room-view camera, and a patient vital monitor—into a single recording or stream.

  • Flexibility: The low-profile M.2 design allows it to be integrated into sealed, medical-grade all-in-one PCs used in sterile environments.

• Security & Multi-View Monitoring

  • Function: Ingests four high-quality SDI camera feeds for real-time surveillance or AI-driven video analytics (like face or object recognition).

  • Flexibility: Multiple cards can be used in a single system (set via an on-board DIP switch), allowing for 8, 12, or 16-channel capture in a relatively small workstation.

• Education & Lecture Capture

  • Function: Records a multi-perspective classroom experience by capturing the teacher, a document camera, a student-view camera, and a digital whiteboard simultaneously.

  • Flexibility: Fits easily into thin, 1U rackmount servers or small PCs hidden behind podiums, keeping the classroom clutter-free.

• Domestic / Prosumer Power Users

  • Function: Ideal for “Small Form Factor” (SFF) PC enthusiasts who want a professional multi-camera setup for high-end vlogging or gaming without a massive desktop tower.

  • Flexibility: Since it occupies an M.2 slot (typically used for SSDs), it allows domestic creators to keep their main PCIe slot free for a powerful Graphics Card (GPU).
